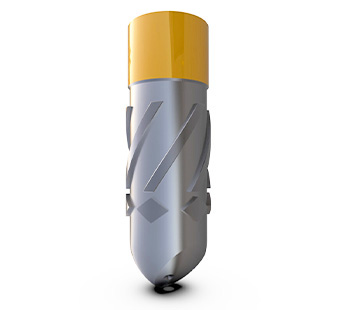

Reamer Shoe Single/Double Valve
DIC is a Supplier and Exporter of Reamer Shoes Single/ Double Valve in UAE. The reamer shoe single/double valve is designed to run on all sizes of casing and liners. It is designed with a blade-cutting structure and diamond-shaped faces that ensure safe passage of casing and liners, thus facilitating rotating and reciprocating applications.
Reamer shoe effectively negotiates around ledges, swelling shale, mud cake build-up on porous formations, and the sand bridges in the wellbore. Reamer shoe provides highly effective protection against the unexpected or anticipated casing and liner running problems. These are available in the 4 1/2" to 30 "sizes range. Any special sizes can be available upon request.
Product specification:
| Sizes | Bore O.D | Bore ID | Min. Bore | Thread | Ib (in) | |
|---|---|---|---|---|---|---|
| Float Shoe | 5 1/2" | 6" | 4 3/8" | 2" | LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | LCSG | 3626 | |
