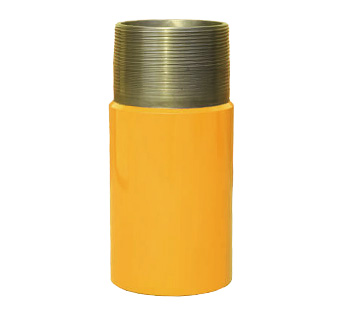

Float Collar Single/Double Valve
We are Supplier and Exporter of Float Collar Single/ Double Valve in Ajman, UAE. It provides a plunger valve in most applications. Float collars are designed to ensure the valve has the maximum circulation rate in vertical, horizontal, and deviational wells. The material used for the float collars is seamless casing-grade steel. Float equipment can be provided in all grades of steel.
The material used in the valves is High polymer plastic, and the valve is including of natural rubber coated with a phenolic substance. The float collars can be ordered in a single or double valve and can also be supplied with a cement nose, aluminum nose, or bladed nose. It can be supplied with a non-rotating plate that is required with our non-rotating cementing plugs. All our float equipment is PDC drillable.
These float collars are available in 3 1/2" to 30 "sizes. Any special sizes can be available upon request.
Product specification:
- Connection Type: BTC/LTC/BCSG and Working Pressure: 35
Sizes | O.D.(mm) | Total Length | I.D.(mm) | Dia.(mm) | |
---|---|---|---|---|---|
Float Collar | 5" | 141.3 | 500 | 110 | 50 |
5 1/2" | 153.67 | 530 | 112 | 55 | |
7" | 194.46 | 586 | 162.5 | 77 | |
9 5/8" | 270 | 720 | 225 | 77 | |
13 3/8" | 365 | 720 | 319 | 77 | |
20" | 533.4 | 720 | 475 | 77 | |
Float Shoe | 5" | 140.3 | 495 | 110 | 50 |
5 1/2" | 153.67 | 514 | 112 | 55 | |
7" | 194.46 | 533 | 162.5 | 77 | |
9 5/8" | 269.88 | 550 | 225 | 77 | |
13 3/8" | 339.7 | 550 | 319 | 77 | |
20" | 534 | 652 | 475 | 77 |
