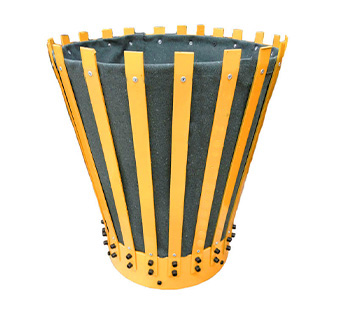

Canvas Cementing Basket
We are Suppliers and Exporters of Canvas Cementing Baskets in UAE. Canvas Cementing Basket is designed with flexible bow springs heat treated under controlled form for maximum strength and uniformity and welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns during primary cementing operations.
It consists of heavy-duty canvas liners concentrated to staves and fabricated using high-strength, flexible steel bows mounted on the steel slip-on end collar. The cement basket can better adapt to the borehole and can accommodate larger than nominal hole sizes. The baskets are generally on the casing, tubing, and liner strings above the weak formation to protect weak formations from hydrostatic pressure exerted by the weight of cement columns. These are recommended for use in all kinds of standard casing grades.
- Slip-on canvas cement basket.
- Slip-on welded cement basket.
- Canva cementing basket is easy to handle, has a simple structure, and defends leakage effectively.
- It is not infected by the temperature and causticity liquid.
- It can be used with relevant small casing.
- The basket can be expanded or contracted as needed and can rotate.
We have two primary styles of cement baskets:
FEATURES OF CANVAS CEMENTING BASKET:
Product Specification:
Sizes | NO. of Bows | Length | Basket O.D. | Min. Hole Size | |
---|---|---|---|---|---|
In. | - | - | in | mm | in |
4 1/2 | 10 | 24 ½ | 12 1/2 | 317.5 | 6 |
5 | 10 | 24 ½ | 13 | 342.9 | 6 |
5 1/2 | 12 | 24 ½ | 13 1/2 | 342.9 | 7 1/4 |
6 5/8 | 12 | 24 ½ | 14 5/8 | 371.5 | 8 3/8 |
7 | 14 | 24 ½ | 15 | 381 | 8 3/8 |
7 5/8 | 14 | 24 ½ | 15 5/8 | 396.9 | 9 1/2 |
8 5/8 | 16 | 24 ½ | 16 5/8 | 422.3 | 10 5/8 |
9 5/8 | 18 | 24 ½ | 17 5/8 | 447.7 | 11 5/8 |
10 3/4 | 18 | 24 ½ | 18 3/4 | 476.3 | 12 3/4 |
11 3/4 | 20 | 24 ½ | 19 3/4 | 501.7 | 13 3/4 |
11 3/8 | 24 | 24 ½ | 21 3/8 | 542.9 | 15 1/2 |
16 | 28 | 24 ½ | 24 | 609.6 | 18 |
18 5/8 | 34 | 24 ½ | 26 5/8 | 676.3 | 20 5/8 |
20 | 34 | 24 ½ | 28 | 711.2 | 22 |
