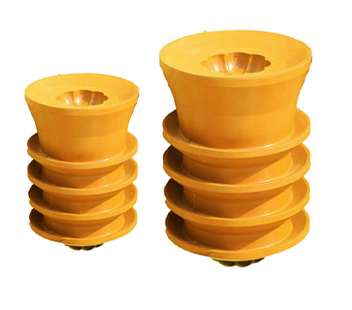

Non Rotating Cementing Plug
DIC is a Supplier and Exporter of Non Rotating Cementing Plug in UAE. It is designed to reduce drill-out times. This cementing plug uses reinforced locking teeth built into the plugs. Plugs are locked together between plug and float equipment to eliminate the rotation of the plug during drill-out.
The body of the cementing plug is made using a plastic core which prohibits aluminum and a large mass of rubber found in conventional cementing plugs. The operating range of temperature for a non rotating cementing plug is 200 degrees Fahrenheit. Also, plugs can be ordered for higher operating temperatures and operation in either synthetic or mud fluids. These plugs are completely PDC drillable.
These are available in 3 1/2" to 30 "sizes, and we also provide customized services as per customer requirements.
- Available in natural / nitrile / HNBR/ AFLAS coverings based on customer specific requirements.
- Completely PDC drillable as no metal parts are used.
- Non rotating top and bottom cementing plugs are designed to reduce drill out time.
- Upto 200 degree Fahrenheit or more.
FEATURES OF NON ROTATING CEMENTING PLUG:
Product Specification:
| Casing Size | Casing Specification | O.D Of Rubber Cup | ||
|---|---|---|---|---|
| - | Kg/m | Ib/ft | mm | in. |
| 4-1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-35.86 | 122 | 4.803 |
| 5-1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7-5/8" | 35.72-63.69 | 24.00-42.80 | 185 | 7.283 |
| 9-5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10-3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13-3/4" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
