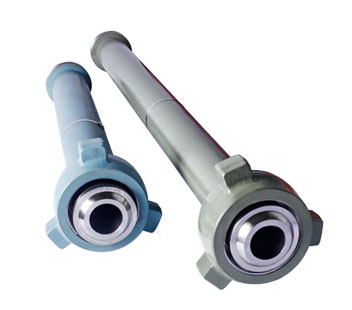

Integral Pup Joints

Integral Pup Joints are used for transporting high-pressure flow in fracturing, cementing, maintenance, and test manifolds. These are made from high-quality alloy steel, integrally constructed, forged-ended features seamless upset construction. Standard integral pup joints are available in different models, pressure, and temperature rating.

All our products have passed the ISO certification and API certifications. We have become a reliable Supplier and Exporter of Integral Pup Joints in UAE.

Our products are tested numerous times under technical guidance and are made from the best quality material. We also provide customization services according to customer requirements.

Technical Specification:

Material: Alloy steel, ANSI 4135, 4130, 35CrMo.
Rated Working Pressure: 69 ~ 138 MPa (10000 ~ 20000 psi).
Nominal Size: 1 1/2″, 2″, 3″, & 4″.
Application: Fracturing, Cementing, Acidizing, Testing Lines.
Working Medium: Oil, natural gas, a gas containing H2S, CO.i>
Available in standard and non-standard sizes.

Nominal Size	CWP psi(bar)	Length	End Connection	Weight lb(kg)
1-1/2"	15000 (1034)	6ft	FIG 1502 F x M	56(25.4)
1-1/2"	15000 (1034)	10ft	FIG 1502 F x M	82(37.2)
2"	15000 (1034)	2ft	FIG 1502 F x M	35(15.9)
		3ft	FIG 1502 F x M	44(20.0)
		4ft	FIG 1502 F x M	53(24.0)
		5ft	FIG 1502 F x M	61(27.7)
		6ft	FIG 1502 F x M	69(31.3)
		8ft	FIG 1502 F x M	86(39.0)
		10ft	FIG 1502 F x M	103(46.7)
		12ft	FIG 1502 F X M	121(54.7)
		16ft	FIG 1502 F X M	155(70.1)
		20ft	FIG 1502 F X M	189(85.6)
3"	15000 (1034)	2ft	FIG 1502 F x M	59(26.8)
		3ft	FIG 1502 F x M	76(34.5)
		4ft	FIG 1502 F x M	94(42.6)
		5ft	FIG 1502 F x M	111(50.3)
		6ft	FIG 1502 F x M	128(58.1)
		8ft	FIG 1502 F x M	163(73.9)
		10ft	FIG 1502 F x M	198(89.8)
		12ft	FIG 1502 F x M	231(105)
		16ft	FIG 1502 F x M	302(137)
		20ft	FIG 1502 F x M	370(168)
3"	15000 (1034)	2ft	FIG 2002 F x M	149(67.6)
		3ft	FIG 2002 F x M	198(89.8)
		4ft	FIG 2002 F x M	248(112)
		5ft	FIG 2002 F x M	297(135)
		6ft	FIG 2002 F x M	347(157)
		8ft	FIG 2002 F x M	446(202)
		10ft	FIG 2002 F x M	545(247)
		12ft	FIG 2002 F x M	644(292)
		16ft	FIG 2002 F x M	842(382)
4"	15000 (1034)	2ft	FIG 1502 F x M	131(59.4)
		3ft	FIG 1502 F x M	172(78.0)
		4ft	FIG 1502 F x M	213(96.6)
		5ft	FIG 1502 F x M	254(115)
		6ft	FIG 1502 F x M	295(134)
		8ft	FIG 1502 F x M	376(171)
		10ft	FIG 1502 F x M	458(208)
		12ft	FIG 1502 F x M	540(245)
		16ft	FIG 1502 F x M	319(703)
