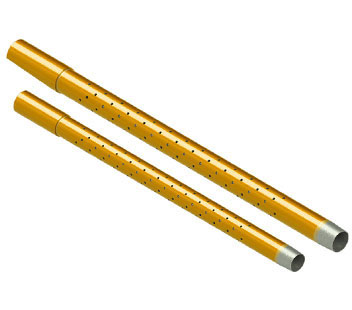

Perforated Pup Joints

We are Supplier and Exporter of Perforated Pup Joints in UAE. It is usually installed between the bottom of two nipples of a completion. It allows unrestricted fluid or gas flow, which increases the accuracy and reliability of acquired downhole production data.

We supply all sizes, grades, and thread profiles to meet custom requirements. The perforated pup joints are sometimes also known as the perforated production tube. All our products have passed the ISO certification and API certifications. Our products are tested numerous times under technical guidance and are made from the best quality material.

Technical Specification:

Diameters: 0.75" through 4.5" nominal O.D.
Weights: Standard or Heavy Wall.
Lengths: 2, 3, 4, 6, 8, 10, and 12 ft. Standards (Length up to 20' available upon request).
Grades: J-55, N-80, N-80 1& Q, L-80, P-110, 13-CR and other premium grades.
Connections: EUE, NUE, Buttress Premium.

Sreen pipe dimension (in)	OD(mm)	Wall thickness(mm)	ID (mm)	Stitch number of each circle	Slot width(mm)	Slot length (mm)	Length(mm)
2-3/8"	60.3	4.83	50.64	12~18	0.2~0.8	45~100	1000~12000
2-7/8"	73	5.51	61.98	20~24		45~100
3-1/2"	88.9	6.45	76	24~28		45~100
4"	101.6	6.65	88.29	24~30		45~100
4-1/2"	114.3	5.69	102.92	24~30		45~100
		6.35	101.6			45~100
		7.37	99.57			45~100
		8.56	97.18			45~100
5"	127	5.59	115.82	28~36	0.25~0.8	45~100
		6.43	114.15			45~100
		7.52	111.96			45~100
		9.19	108.61			45~100
5-1/2"	139.7	6.2	127.3	30~38		45~100
		6.99	125.73			45~100
		7.72	124.26			45~100
		9.17	121.36			45~100
		10.54	118.62			45~100
7"	177.8	6.91	163.98	36~50		45~100
		8.05	161.7			45~100
		9.19	159.41			45~100
		10.36	157.07			45~100
