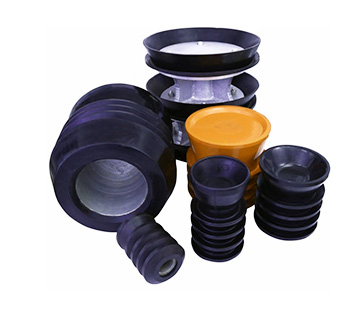

Conventional Aluminium Insert Cementing Plug
Conventional Aluminium Insert Cementing Plug is made of graded rubber fused upon a composite or aluminum core. The top conventional cementing plug can be used when a dual plug system is not required, and the bottom plug can be used when a dual plug system is required.
The operating temperature range for conventional aluminum cementing plug is 200 degrees Fahrenheit. We are highly appreciated among our customers for providing the best quality oilfield products. We have become a reliable supplier and exporter of conventional aluminum cementing plugs in standard and non-standard sizes.
- Completely PDC drillable.
- Operating range up to 200 degrees Fahrenheit.
- Size range: 3 1/2” to 30” or as required.
- Available in standard and non-standard sizes.
FEATURES OF CONVENTIONAL ALUMINUM INSERT CEMENTING PLUG:
| Casing | Casing Weight Range | Wiper Fin O.D | Working | Working | Burst | Hardness | ||
|---|---|---|---|---|---|---|---|---|
| Size(in) | mm | in | mm | in | Temperature | Pressure | Pressure | Hardness |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 | -30℃ to | ≥15MP | 1MP-2MP | 75-95 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 | 150℃ | |||
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 | - | |||
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 | - | |||
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 | - | |||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 | - | |||
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 | -30℃ to | ≥10MP | ||
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 | 150℃ | |||
