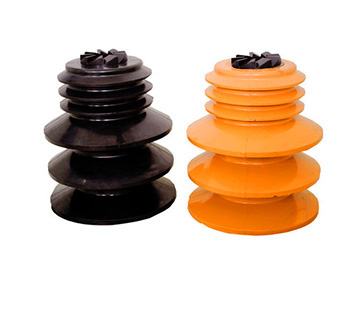

Combination Cementing Plug
We are Supplier and Exporter of Combination Cementing Plug in UAE.
It is provided different sizes of rubber fins which help in wiping on the casing walls and assist in displacing the cement in one step. These combination cementing plugs are used in combination casing strings with two or more different casings or tubing.
Combination cementing plugs can be ordered for higher operating temperatures and operations such as synthetic or mud fluids. These plugs are completely PDC drillable. we also provide customized services as per customer requirements.
- Completely PDC Drillable.
- Available in both conventional as well as in non-rotating design.
- Designed and tested to withstand differential pressure.
- Designed to fit in most cementing heads.
- Differential pressure of up to 5000 psi.
FEATURES OF COMBINATION CEMENTING PLUG:
Product Specification:
| Casing Size | Casing Specification | O.D Of Rubber Cup | ||
|---|---|---|---|---|
| - | Kg/m | Ib/ft | mm | in. |
| 4-1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-35.86 | 122 | 4.803 |
| 5-1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7-5/8" | 35.72-63.69 | 24.00-42.80 | 185 | 7.283 |
| 9-5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10-3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13-3/4" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
