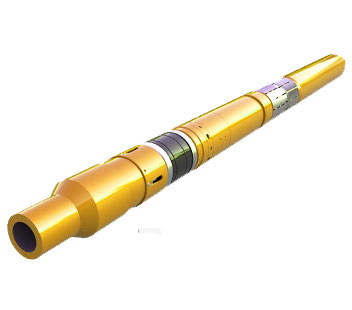

Open Hole Hydraulic Set Packer
DIC is a Supplier and Exporter of Open Hole Hydraulic Set Packer in Ajman, UAE. The open-hole hydraulic packer provides mechanical isolation where high-pressure differentials are required across the packer element. Open hole packer conventional compression set element sets with differential pressure over the anti-preset shear value.
The open-hole hydraulic set packer is designed to be set by applying pressure at the surface to create sufficient differential pressure across the packers. A plugging device is required below the packer so that tubing the pressure can be used to the set packer.
Suitable plugging devices include but are not restricted to a pump-out plug, KLC (Locking Ball Landing Collar), horizontal ball seat, ball seat, or a wireline blanking plug seated in the proper landing nipple.
- It is a multizone open-hole completion for interzonal isolation.
- High-pressure, high-temperature stimulation operations.
- Horizontal wells.
- Completion of underbalanced wells or wells that have losses.
Applications:
- An anti-pre set feature locks the setting device during deployment to make sure that the packer cannot set prematurely.
- The compression-set element of the packer provides instant isolation and pressure integrity, which improves operational efficiency.
- The high-pressure, high-temperature design withstands pressures up to 10,000 psi (103.4 Mpa) at 300 degrees Fahrenheit in stimulation treatments, which maximizes the effectiveness of the stimulation.
Features:
