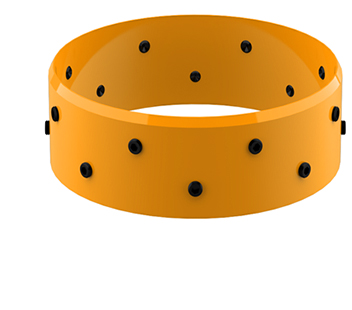

Slip on Set Screw Ductile Iron Stop Collar
DIC is a Supplier and Exporter of Slip-on Set Screw Ductile Iron Stop Collars.
It has welded on one side. Stop collar has premium quality bows with a high restoring force and uniform hardness. The slip-on centralizers come with a direct installation pipe denoted for slipping on. It has high tensile strength, absorption shock value, and great impact value. The welded centralizers can never be smooth because of a single-piece centralizer.
The welding can be overlapped and little exposed. It allows friction to fluid during running in the hole, but the single-piece centralizers have a corner radius that allows the fluid to pass due to low friction. Any special sizes can be available upon request.
Material: Stainless
- These Stop Collars undergo a special Phosphate coating process to restrict from rust and then coated with special Polyester Powder.
| Sizes | ID (mm) | OD (mm) | Holding force, KN |
|---|---|---|---|
| 4-1/2" | 114 | 126 | 24 |
| 5" | 126 | 138 | 24 |
| 5 1/2" | 139 | 151 | 30 |
| 7" | 177 | 189 | 30 |
| 7 5/8" | 193 | 285 | 30 |
| 8 1/8" | 206 | 218 | 30 |
| 9 5/8" | 245 | 257 | 40 |
| 10 3/4" | 272 | 284 | 40 |
| 13 3/8" | 338 | 350 | 40 |
