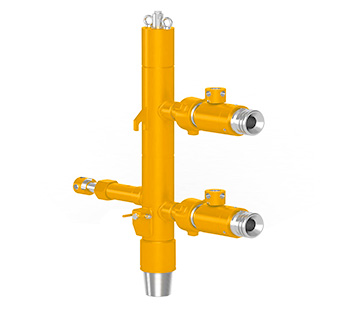

Single Plug Cementing Head
DIC is a Supplier of Single Plug Cementing Head in UAE. It is used for cementing applications, mostly pumping slurry and releasing plugs. The cement head is connected between the upper end of the casing string and the cementing pipe sink. Cementing heads are fitted to the top joint of the casing string to hold the cement plug before it is pumped down the casing during the cementing operation.
Mostly cementing heads can hold both the top and bottom plugs. We supply cementing heads in various sizes and pressure ratings for superior performance in cementing operations. We are highly appreciated among our customers for supplying the best quality oilfield products. We assure you to supply the best products for your various needs.
- Easy to operate and provides easy loading of plugs.
- Made using API steel grades with API round, buttress, and premium threads.
- The main parts of cementing plugs are made from AISI4145H alloy steel.
- A single or double plug chamber is available.
- Available in size range 5 1/2” to 13 3/8”.
- Custom sizes are also available.
FEATURES OF CEMENTING HEADS:
| size | Length (mm) | Manifold | I.D. of Plug (mm) | Length of Plug (mm) | Working Pressure (Mpa) |
|---|---|---|---|---|---|
| 5 1/2" | 1460 | 2" union | 125 | 400 | 35.5 |
| 6 5/8" | 1500 | 150 | 450 | 35.5 | |
| 7" | 1500 | 160 | 450 | 35.5 | |
| 7 5/8" | 1550 | 175 | 450 | 35.5 | |
| 9 5/8" | 1750 | 225 | 550 | 35.5 | |
| 10 3/4" | 1750 | 250 | 550 | 35 | |
| 13 3/8" | 1780 | 320 | 600 | 35 |
