Bridge Plug

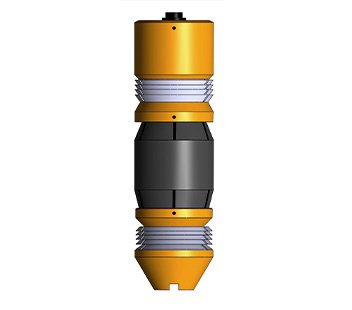

We are Supplier and Exporter of Bridge Plug. A bridge Plug is a down-hole tool composed primarily of slips, a plug mandrel, and a rubber sealing element. It can be applied to the wellbore. Where it is run and set in the casing to isolate a lower zone while an upper section is tested, cemented, stimulated, produced, or injected either permanently or temporarily within the well bore to stop fluids or gas from reaching an upper zone of the well while it's being worked on or treated.
Bridge plugs can be permanent type or a retrievable type. It can be set mechanically and hydraulically. In short, it is a two-in-one product that can be converted from a cement retainer to a bridge plug or vice versa.
- 10000 PSI differential pressure rating above and below the plug.
- The equalization feature of the bridge plug prevents premature release against differential pressure.
- It can be converted from a cement retainer to a bridge plug or vice-versa.
- It can be set mechanically or hydraulically.
FEATURES OF BRIDGE PLUG:
| Setting range min ID(in) | Setting range max ID(in) | Tools OD(in) | Release strength (lbs) |
|---|---|---|---|
| 1.61 | 1.995 | 1.468 | 8000 |
| 1.905 | 2.441 | 1.75 | 12000 |
| 2.156 | 2.765 | 1.906 | - |
| 2.375 | 3 | 2.187 | - |
| 2.441 | 3.343 | 2.281 | - |
| 2.875 | 3.5 | 2.5 | 25000 |
| 3.187 | 3.92 | 2.75 | - |
| 3.92 | 4.276 | 3.25 | 30000 |
| 3.696 | 4.276 | 3.5 | - |
| 4.154 | 5.044 | 4.062 | - |
