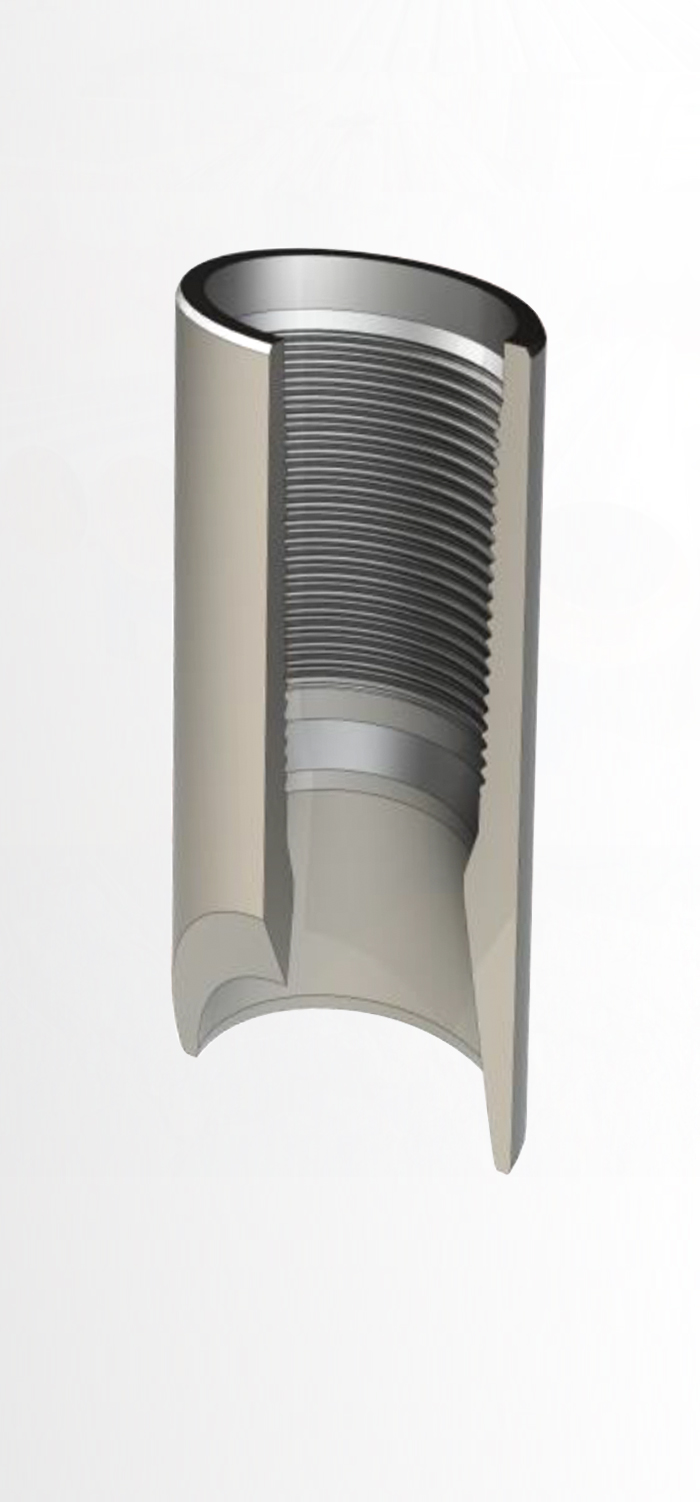

Wireline Entry Guide
The Wireline Entry Guide is used to safely re-enter wireline tools from the casing into the tubing string. The internal angle guides the wireline or slick line tool string back into the tubing. The mule shoe guide is a standard guide for all Completion equipment.
- Lowest component in the tubing string.
- Safe re-entry of wireline or slickline tools into the tubing string
- Available in low alloy steel and premium materials.
- Available in bevelled, full or half mule shoe configurations.
- Rugged one-piece construction.
Application
Features
DATASHEET
| Description | Value |
|---|---|
| Thread Sizes | 2-3/8" and onwards |
| Services | H2S/CO2/Standard |
| Material Grades | J-55, N-80, L-80, P-110, 13CR |
