Pump Out Plugs

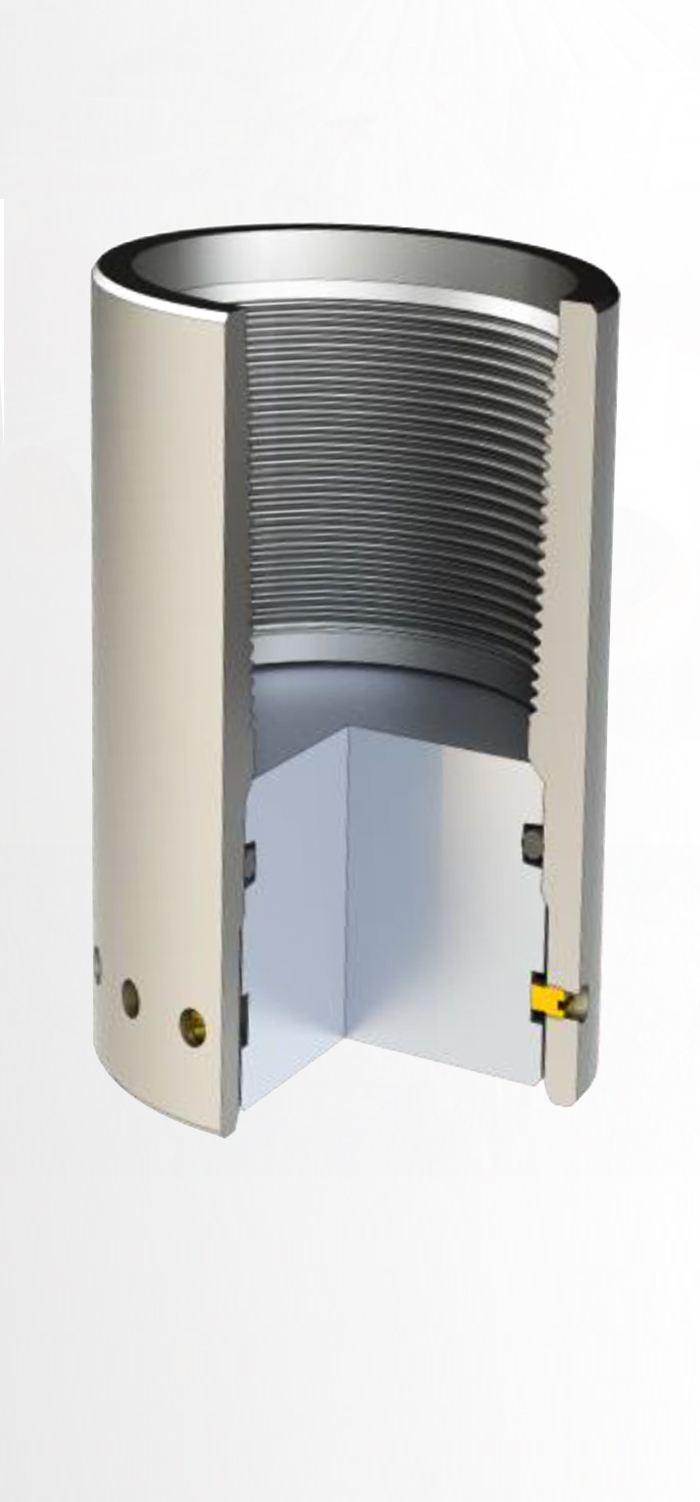

Pump Out Plugs feature a solid core plug, which is best suited to snubbing type operations or the setting of hydraulic set packers. The shear pressure ratings are easily adjusted in the field. Once sheared, the plug insert is forced out the bottom, leaving a fully open tubing bore.
DATASHEET
| TUBING THREAD | TOOL OD | SHEAR VALUE (+/- 15%) | |
|---|---|---|---|
| MM IN | MM IN | PER MPA PSI | TOTAL MPA PSI |
| 60.3 2-3/8 | 77.7 3.06 | 2.82 410 | 28.20 4100 |
| 73.0 2-7/8 | 93.2 3.67 | 2.14 310 | 29.96 4340 |
| 88.9 3-1/2 | 114.3 4.5 | 1.35 195 | 24.30 3510 |
