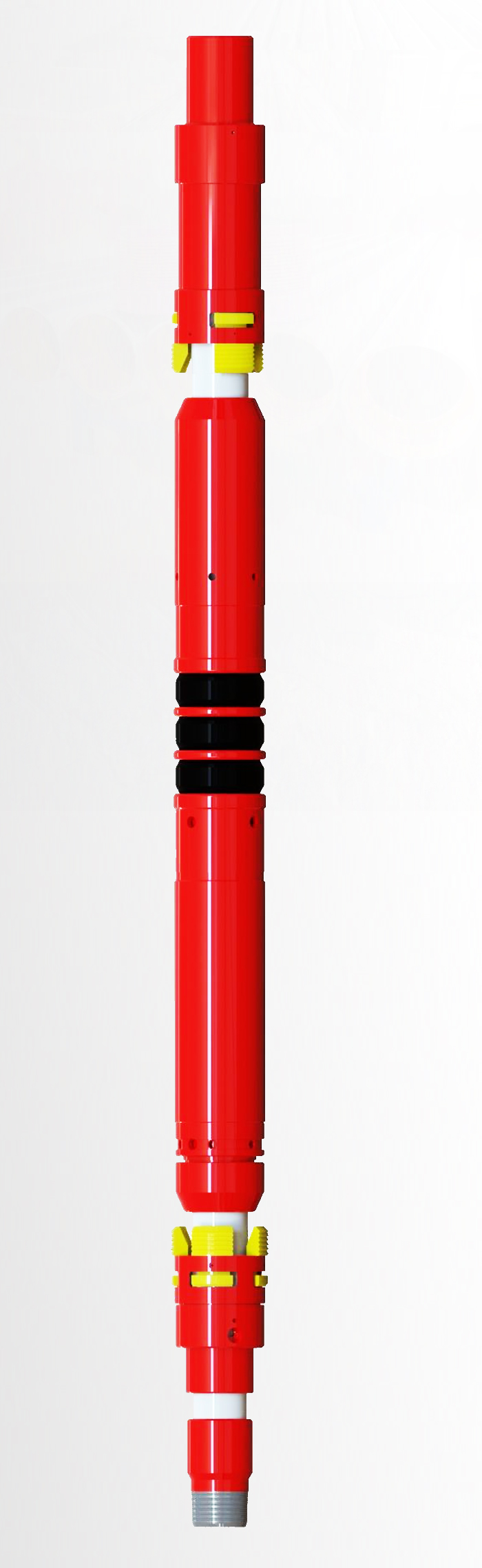

DIC Pak-I (High Pressure Packer)
DIC Pak-I (high pressure) is readily customizable for maximum performance in wells where HS, CO, amines or other chemicals require modified metallurgical or demanding elastomeric properties. It's a straight pull release type packer.
Features and Benefits
- Available Metallurgy 9Cr. L-80 and 4140 L-80
- Elastomers available: Nitrile, HNBR, HSN, Viton, Aflas
- Large internal by-pass
- Temperature rating up to 350 Degree F.
- Three (3) element packing system
- Slips being positioned below rubber element are protected from well debris.
DATASHEET
| Casing (O D) | Casing Weight (PPF) | min. Casing (I D) | Max. Packer (O D) | Packer (I D) | Connections |
|---|---|---|---|---|---|
| 5.00" | 11.5 - 15.0 | 4.408" | 4.125" | 1.938" | 2 - 3/8" EU |
| 18.0 -20.8 | 4.156" | 4.000" | 1.938" | 2 - 3/8" EU | |
| 5 1/2 " | 20.0 - 23.0 | 4.670" | 4.500" | 1.984" | 2 - 3/8" EU |
| 14.0 -20.0 | 4.892" | 4.625" | 1.984" | 2- 3/8" EU | |
| 20.0 - 23.0 | 4.670" | 4.500" | 2.375" | 2 - 7/8" EU | |
| 15.5 - 17.0 | 4.892" | 4.625" | 2.375" | 2 - 7/8" EU | |
| 9.0-13.0 | 5.044" | 4.875" | 2.359" | 2 - 7/8" EU | |
| 6 - 5 / 8 " | 24-28 | 5.791" | 5.588" | 2.900" | 3 - 1/2" EU |
| 7.0" | 26.0 - 32.0 | 5.875" | 5.890" | 2.500" | 2 - 7/8" EU |
| 17.0-26.0 | 6.276" | 6.000" | 2.500" | 2 - 7/8" EU | |
| 17.0-26.0 | 6.276" | 6.000" | 3.000" | 3 - 1/2" EU | |
| 26.0 - 35.0 | 6.004" | 5.87" | 3.000" | 3 - 1/2" EU | |
| 9 - 5/8 " | 43.5-53.5 | 8.535" | 8.250" | 4.000" | 4 - 1/2" EU |
| 32.3-43.5 | 8.755" | 8.500" | 4.000" | 4 - 1/2" EU | |
| 10 - 3/4 " | 32.75 -45.50 | 9.995" | 10.192" | 4.000" | 4 - 1/2" EU |
