Wireline Adapter Kit

Wireline Adapter Kit

DIC is Wireline Adapter Kit Exporter, providing dependable solutions for wireline setting operations. The Wireline Adapter Kit, is designed to work with wireline setting equipment such as packers, bridge plugs, and cement retainers.

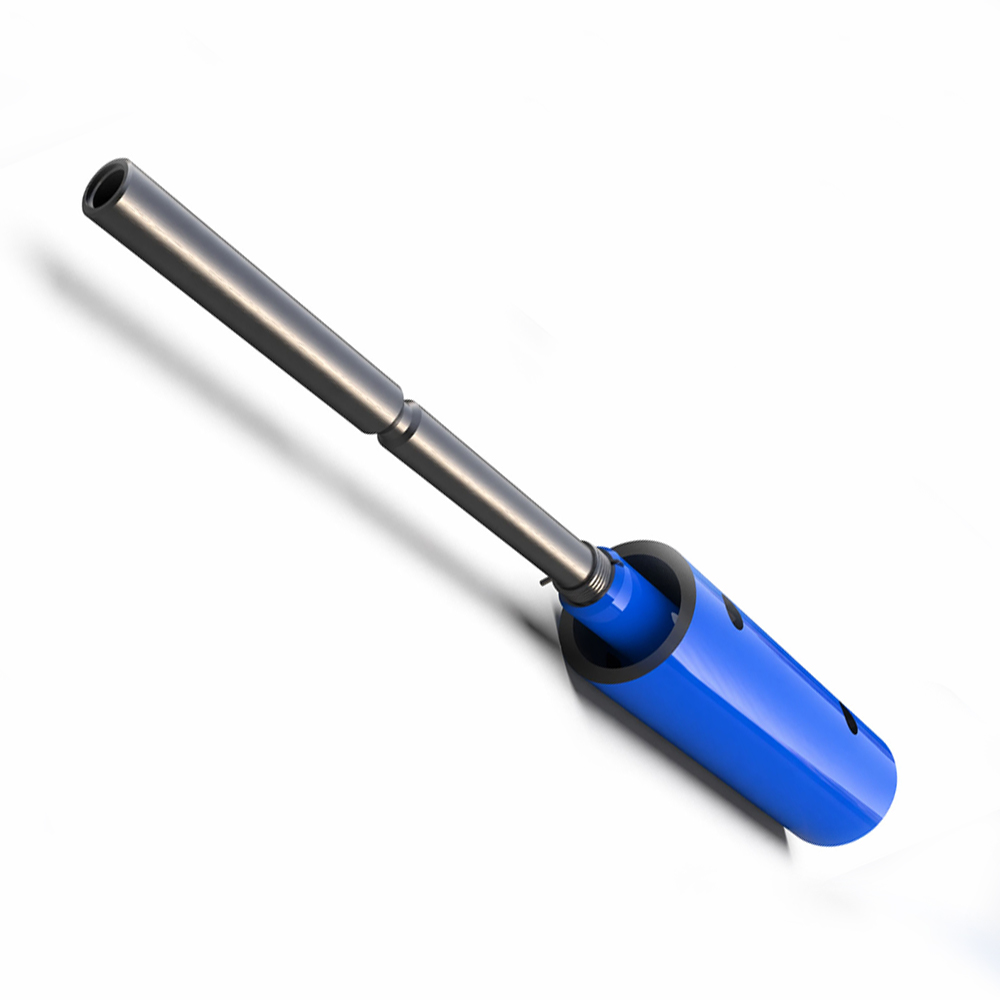

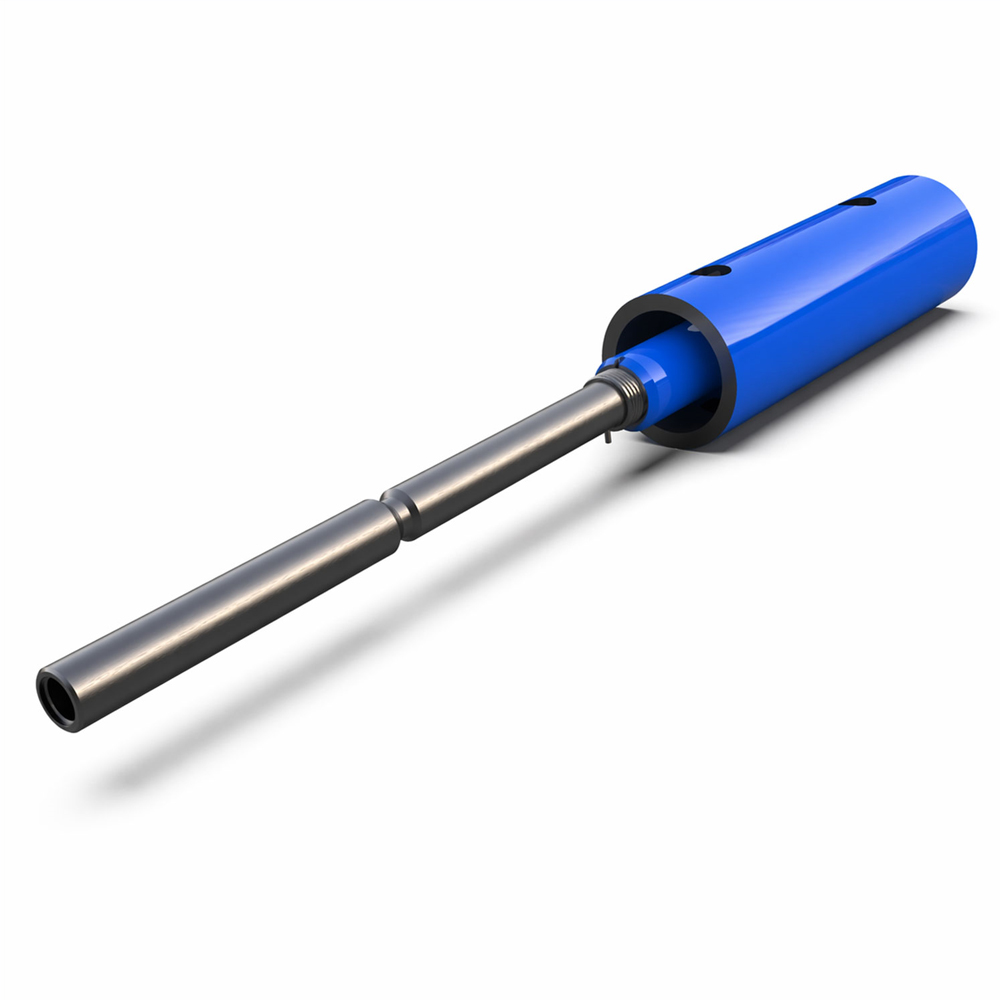

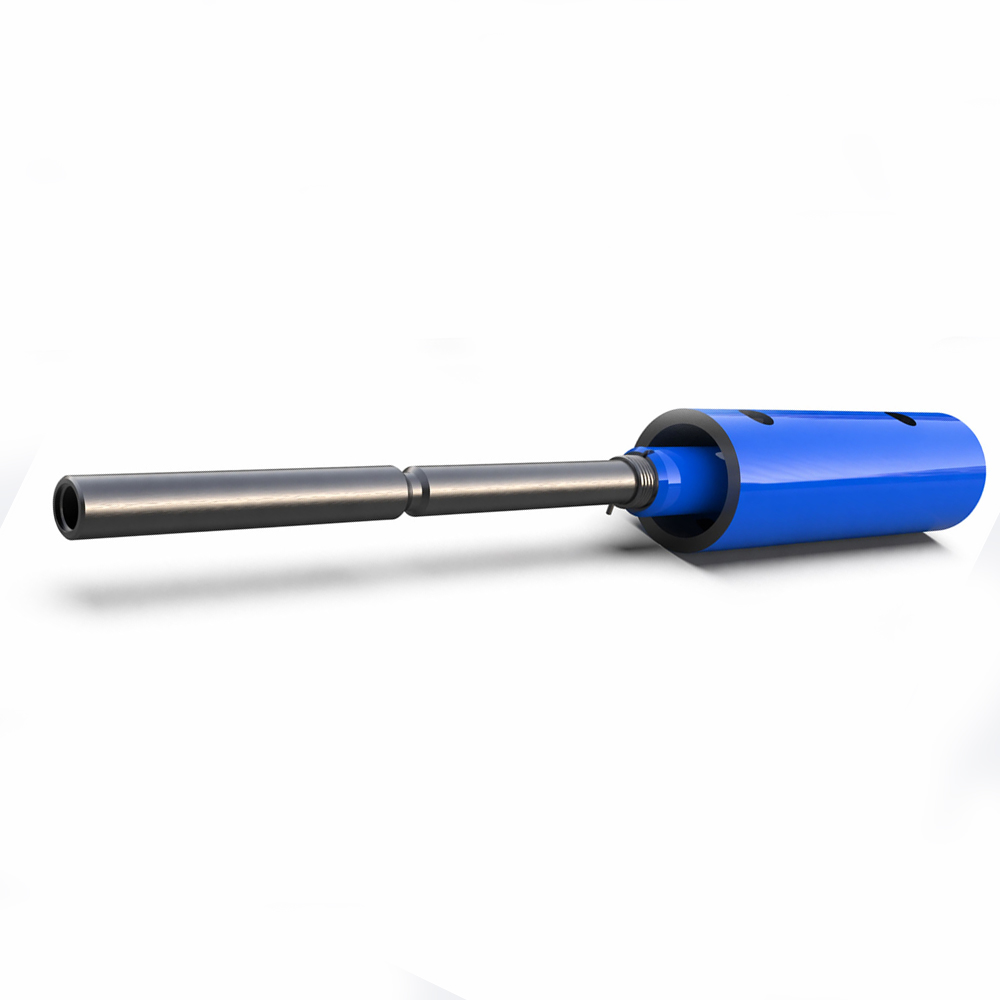

It includes an Adjustor Sub, Setting Sleeve, and Tension Mandrel. The kit is compatible with standard Wireline Pressure Setting Assemblies and Hydraulic Setting Tools. When the setting tool is activated, the setting sleeve transfers load to the downhole equipment, initiating the setting process. The tension mandrel connects to the release stud, allowing tensile force to be applied for complete pack-off, after which the release stud shears to free the tool for retrieval. A spring-loaded tension mandrel allows adjustment for different sizes.
The Wireline Adapter Kit connects bridge plugs or cement retainers to the setting assembly. During operation, the tension mandrel moves upward while the setting sleeve remains fixed, engaging slips and setting the tool. The assembly can then be pulled out of the hole after completion.

Contact us today for reliable solutions and global export support.

Technical Specification

Casing Size Casing Weight Setting Sleeve OD
inch lb/ft inch
4 1/2 9.5-16.6 3.50
5 23.2-24.2
5 1/2 36.4
5 11.5-20.8 3.81
5 1/2 26.0-32.3
5 1/2 14-23
6 18-26 4.93
7 49.5
6 5/8 20-32 5.37
7 32-44
7 17-38
7 5/8 45.3
7 5/8 24-39 6.31
7 3/4 46.1
8 5/8 24-49 7.00
8 3/4 49.7
9 5/8 29.3-58.4 8.00
9 3/4 59.2
9 7/8 62.8
10-3/4 60.7-81 8.87
10-3/4 32.75-60.7 9.43
11-3/4 42-60 10.43
13-3/8 68-102 11.50
13-1/2 81.4
13-5/8 88.2
13-3/8 48-80.7 11.75

Frequently Asked Questions

Why is the Wireline Adapter Kit important in oilfield operations?
Wireline Adapter Kit ensures secure connection, precise load transfer, and reliable activation of downhole tools, improving efficiency and reducing operational risks.
How does the Wireline Adapter Kit improve operational efficiency?
Wireline Adapter Kit enables controlled force transmission, accurate tool setting, and smooth retrieval, helping reduce downtime and improve productivity.
What materials are used in manufacturing a Wireline Adapter Kit?
Wireline Adapter Kit is manufactured using high-quality, durable materials and precision-engineered components to ensure strength, reliability, and long service life in demanding oilfield conditions.
Do you offer private labelling for Wireline Adapter Kit?

Yes, we provide private labelling and branding options for Wireline Adapter Kit to help international clients expand their market presence.

What maintenance is required for the Wireline Adapter Kit?
Wireline Adapter Kit requires routine cleaning, inspection of key components, and proper storage to maintain performance and extend service life.
Do you export Wireline Adapter Kit to European countries?
Yes, DIC Oil Tools is a reliable exporter of Wireline Adapter Kit to European countries including Germany, France, Italy, Netherlands, Norway, Denmark, Poland, Spain, and other regions, ensuring consistent quality and timely international delivery.
What customization options are available for Wireline Adapter Kit?
We offer customization in size compatibility, connection type, load capacity, and design configuration to match various oilfield operational needs.
Can you support repeat orders for long-term contracts?
Yes, we ensure consistent supply of Wireline Adapter Kit for repeat orders, supporting long-term partnerships and ongoing project requirements.
Why choose your company as a Wireline Adapter Kit supplier?
As an experienced Wireline Adapter Kit supplier, we offer competitive pricing, dependable supply capability, and customized solutions for diverse oilfield requirements.
