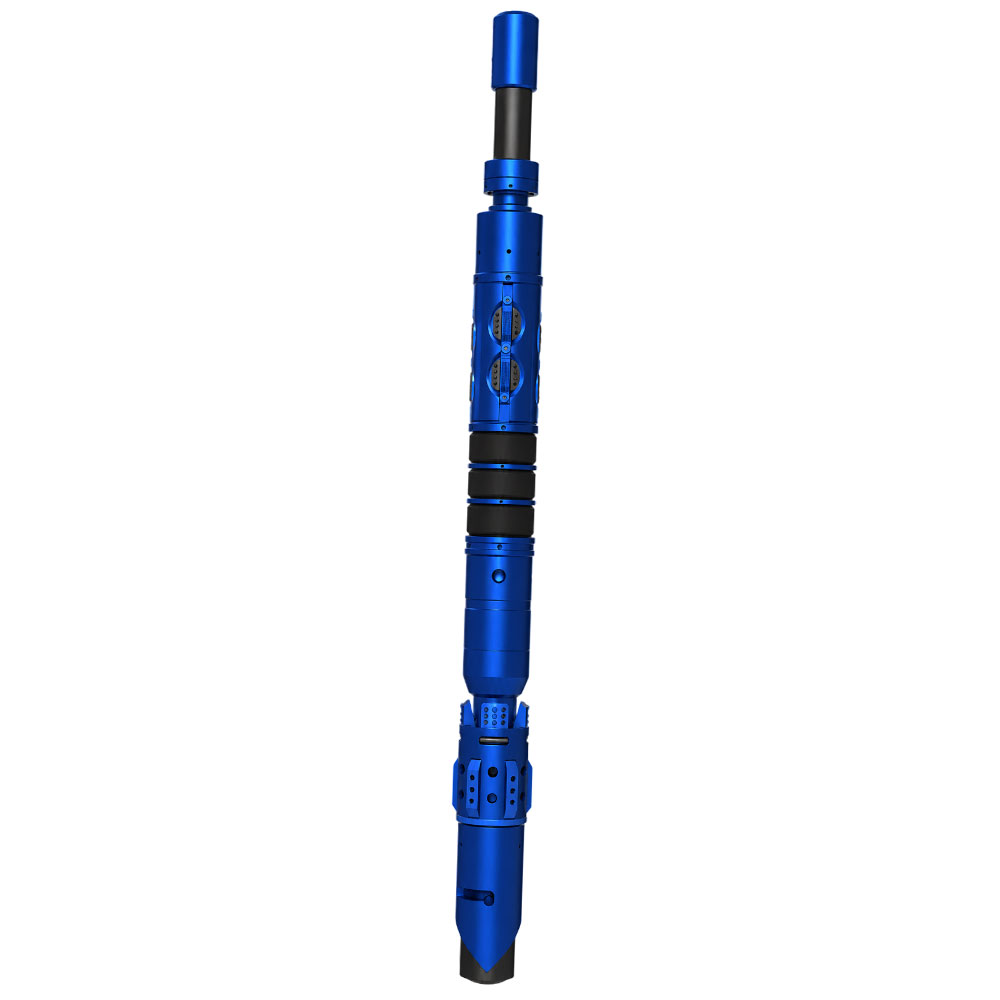

TXT-2 packer

TXT-2 packer

DIC Oil Tools is a TXT-2 Packer Exporter offering a reliable compression-set retrievable service packer designed for demanding remedial operations. It is ideal for applications like squeeze cementing, fracturing, acidizing, and other high-pressure jobs. The packer is set by applying tubing weight, which releases the collet and closes the bypass for effective sealing. Equipped with carbide-inserted drag blocks and slips, along with a three-piece packing element system, it ensures strong grip and improved performance. Hydraulic hold-down buttons are protected during running and circulation, reducing the risk of damage and enhancing tool life. As a trusted production packer supplier, it delivers efficient and durable solutions for oilfield applications. We offer customization options, and supply to Russia, Germany, Iraq, Azerbaijan, Italy, Canada, UK, UAE, Oman, Saudi Arabia and other global markets.

Contact us today for more details and the best price for your requirements.

Technical Specification

Packer Casing Tool Size Pressure Rating
OD Thread WT (T&C) Setting Range OD ID
MM
IN		 MM
IN		 kg/m
lbs/ft		 MM
IN		 MM
IN		 MM
IN		 mpa
Ksi
114.3
4-1/2		 60.3
2-3/8		 14.14 – 20.09 99.57 – 103.89 95.78 44.45 69
9.5 – 13.5 3.920 – 4.090 3.771 1.75 10
139.7
5-1/2		 60.3
2-3/8		 19.35 – 23.07 125.73 – 128.12 121.44 49.28 69
13.0 – 15.5 4.950 – 5.044 4.781 1.94 10
23.07 – 29.76 121.36 – 125.73 117.86 49.28 69
15.5 – 20.0 4.778 – 4.950 4.640 1.94 10
29.76 – 34.23 118.62 – 121.36 114.30 49.28 69
20.0 – 23.0 4.670 – 4.778 4.500 1.94 10
177.8
7		 73.0
2-7/8		 25.30 – 29.76 163.98 – 166.07 159.16 60.45 69
17.0 – 20.0 6.456 – 6.538 6.266 2.38 10
29.76 – 38.69 159.41 – 163.98 154.25 60.45 69
20.0 – 26.0 6.276 – 6.456 6.073 2.38 10
38.69 – 43.16 157.07 – 159.41 151.46 60.45 69
26.0 – 29.0 6.184 – 6.276 5.963 2.38 10
47.62 – 52.09 152.50 – 154.79 147.50 60.45 69
32.0 – 35.0 6.004 – 6.094 5.807 2.38 10

Frequently Asked Questions

Is TXT-2 packer suitable for high-pressure wells?

Composite Bridge Plugs are widely used in plug and perf completions, zonal isolation, hydraulic fracturing, well abandonment, and fast drill tubing operations in both onshore and offshore environments.

What makes TXT-2 packer reliable in harsh conditions?
TXT-2 packer features carbide inserts, strong slips, and durable sealing elements, ensuring long-lasting performance in harsh downhole oilfield environments.
What materials are used in TXT-2 packer?
TXT-2 packer is manufactured with high-quality, high-strength and corrosion-resistant components, ensuring durability, reliable sealing, and long-lasting performance in demanding oilfield applications.
Can TXT-2 packer support OEM oilfield requirements?

TXT-2 packer supports OEM requirements with custom branding, specifications, and design modifications for international oilfield companies.

Is TXT-2 packer available for export to Saudi Arabia?
DIC Oil Tools is a reliable exporter of TXT-2 packer to Saudi Arabia, ensuring durable and efficient solutions for demanding oilfield operations.
Can TXT-2 packer be customized as per customer requirements?
We offer TXT-2 packer customization as per customer requirements, including size, pressure rating, connection type, and application needs for global oilfield projects.
Do you offer private labelling for TXT-2 packer?
DIC Oil Tools offer private labelling for TXT-2 packer, enabling businesses to promote high-quality oilfield tools under their own brand with customized marking, packaging, and documentation for global markets.
Why choose you as a TXT-2 packer supplier?
We are a trusted supplier of TXT-2 packer, offering competitive pricing, consistent quality, and dependable service for oilfield operations worldwide.
Can branding be applied for bulk TXT-2 packer orders?
Yes, we provide TXT-2 packer branding for bulk orders, ensuring consistent brand identity with customized marking, packaging, and documentation for large-scale oilfield supply and distribution.
