SHP Packer

SHP Packer

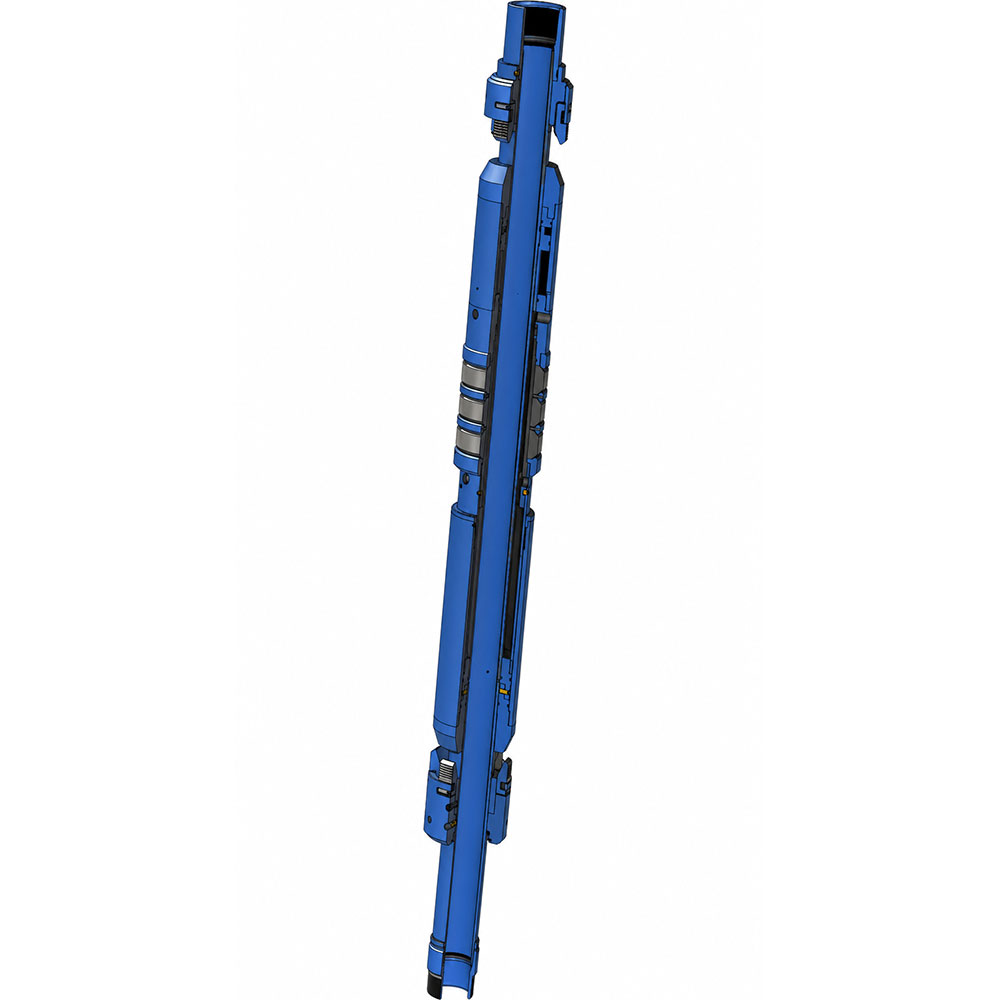

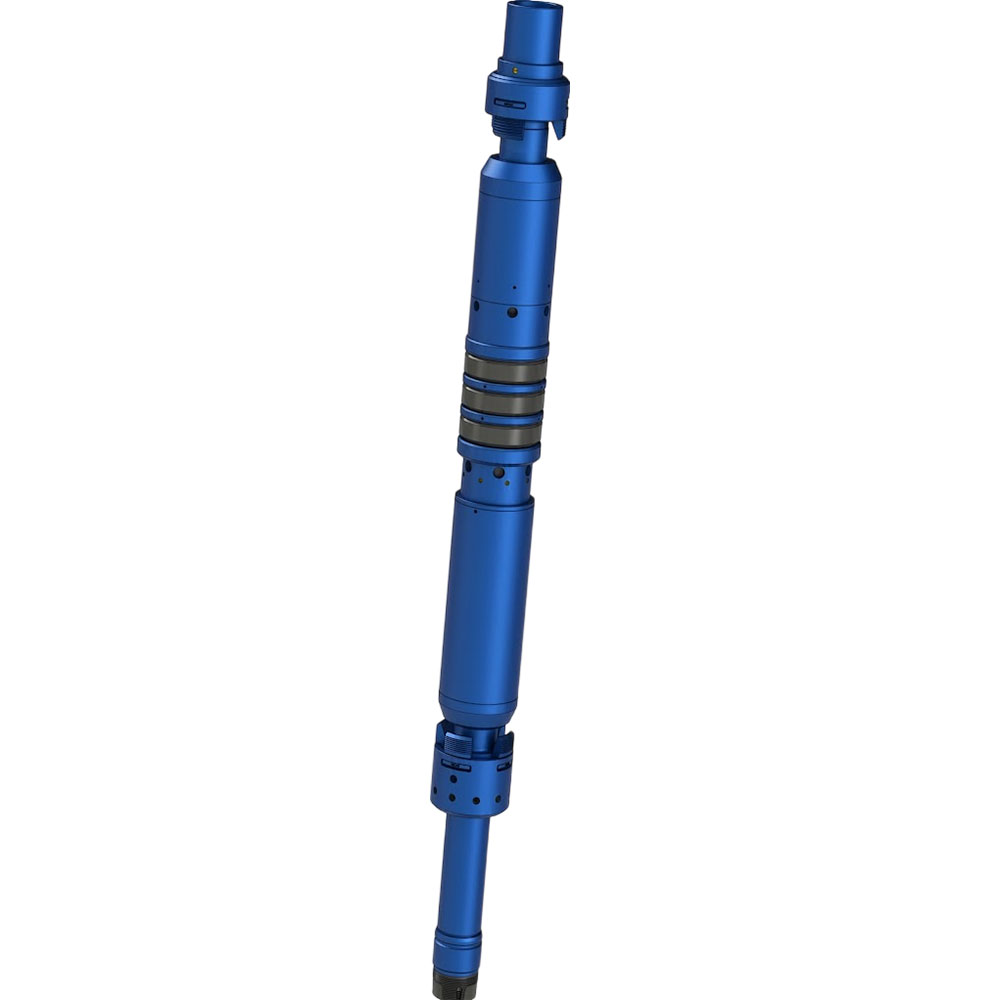

DIC Oil Tools is a trusted SHP Packer Exporter worldwide, offering a reliable hydraulic set single-string retrievable packer designed for smooth and efficient production operations. This packer does not require tubing movement to set; users can simply reach the desired depth and apply pressure to activate it. With pressure ratings up to 7K (48 MPa), it provides strong sealing and dependable fluid isolation. Its slim and durable design makes it suitable for various oilfield applications. The packer can be customized with different elastomers and slips to match specific needs. A large internal bypass reduces swabbing during running and retrieval, while shear screws ensure controlled release and safe operation. We are your trusted production packer supplier delivering quality solutions to global oilfield markets.

Features:

  • Adjustable setting initiation pressure for better control
  • Adjustable shear release for flexible operation
  • Straight pull release for easy retrieval

Contact us today for a quick quote. Trusted SHP Packer supplier for reliable performance.

Technical Specification

Packer Casing Tool Size Pressure Rating
OD Thread WT (T&C) Setting Range OD ID ksi
mpa
in
mm		 in
mm		 lbs/ft
kg/m		 in
mm		 in
mm		 in
mm
4-1/2
114.3		 2-3/8
60.3		 9.5 – 13.5 3.920 – 4.090 3.750 1.94 7
14.14 – 20.0999.57 – 103.8995.2549.348
13.5 – 15.13.826 – 3.9203.6501.947
20.09 – 22.4797.19 – 99.5792.7149.348
5-1/2
139.7		 2-3/8
60.3		 14.0 – 20.0 4.778 – 5.012 4.625 1.97 7
20.83 – 29.76121.36 – 127.30117.4850.048
20.0 – 23.04.670 – 4.7784.5001.977
29.76 – 34.23118.62 – 121.36114.350.048
2-7/8
73.0		 14.0 – 20.0 4.778 – 5.012 4.625 2.40 7
20.83 – 29.76121.36 – 127.30117.4861.048
20.0 – 23.04.670 – 4.7784.5002.407
29.76 – 34.23118.62 – 121.36114.361.048
7
177.8		 2-7/8
73.0		 17.0 – 26.0 6.276 – 6.538 6.000 2.40 7
25.30 – 38.69159.41 – 166.07152.4061.048
26.0 – 32.06.094 – 6.2765.8752.407
38.69 – 47.62154.79 – 159.41149.2361.048
3-1/2
88.9		 17.0 – 26.0 6.276 – 6.538 6.000 2.91 7
25.30 – 38.69159.41 – 166.07152.4073.948
26.0 – 32.06.094 – 6.2765.8752.917
38.69 – 47.62154.79 – 159.41149.2373.948
9-5/8
244.5		 4-1/2
114.3		 32.3 – 43.5 8.755 – 9.001 8.500 3.95 7
48.07 – 64.74222.38 – 228.63215.9100.348
40.0 – 47.08.681 – 8.8358.4373.957
59.53 – 69.94220.50 – 224.41214.3100.348
43.5 – 53.58.535 – 8.7558.2503.957
64.74 – 79.67216.79 – 222.38209.55100.348

Frequently Asked Questions

What is an SHP Packer?
The SHP Packer is a hydraulic set, single-string retrievable packer used in oil and gas wells to isolate zones and control fluid movement in the annulus between tubing and casing.
What pressure rating can the SHP Packer handle?
The SHP Packer is rated for pressure differentials up to 7,000 psi (48 MPa), ensuring reliable performance in demanding downhole environments.
Does SHP Packer improve production efficiency?
Yes, the SHP Packer ensures effective zone isolation and fluid control, which helps improve overall production efficiency and well performance.
Can an SHP Packer be reused?

Yes, the SHP Packer is retrievable and can be reused depending on well conditions and operational wear after proper inspection.

Do you offer customization for SHP Packer?
Yes, DIC Oil Tool offer customization options for SHP Packer based on well conditions, sizes, elastomers, slips, pressure ratings, and specific operational requirements.
Do you handle bulk orders of SHP Packer?
Yes, as an SHP Packer supplier, we efficiently manage bulk orders while maintaining consistent quality and ensuring timely delivery.
Does SHP Packer improve production efficiency?
Yes, the SHP Packer ensures effective zone isolation and fluid control, which helps improve overall production efficiency and well performance.
What services do you offer as an SHP Packer exporter?
As an SHP Packer exporter, we provide customization, strict quality control, and reliable global delivery services.
Which countries do you export SHP Packer to?
As a leading SHP Packer exporter, we supply our products globally, including markets such as Russia, Germany, Iraq, Azerbaijan, Italy, Canada, the United Kingdom, UAE, Oman, Saudi Arabia, and many other countries.
