R AND RN LANDING NIPPLES

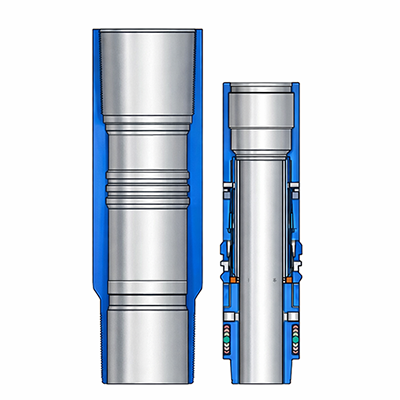

We are ‘R’ AND ‘RN’ Landing Nipples Exporter delivering high-performance completion components for reliable subsurface flow control. ‘R’ Landing Nipples are designed for use with heavy weight tubing and provide selective landing positions using a universal internal profile compatible with lock mandrels. ‘RN’ Landing Nipples are no-go types, ensuring tools are set at a fixed depth and are commonly used as a single nipple or at the bottom of a series. Both types maintain a consistent packing bore ID for proper sealing and performance. As a trusted Lock Mandrels supplier, we support efficient slickline operations, allowing tools to be installed or retrieved under pressure without killing the well. DIC export ‘R’ and ‘RN’ Landing Nipples and Lock Mandrels in worldwide.

Contact us today for more details or a quotation.

Technical Specification

TUBING								FOR HEAVY TUBING WEIGHTS
								R PROFILE		RN PROFILE				LOCK
SIZE / WEIGHT				ID		DRIFT		PACKING BORE		PACKING BORE		NO-GO ID		MANDREL ID
(in.)	(mm)	lb/ft	(Kg/m)	(in.)	(mm)	(in.)	(mm)	(in.)	(mm)	(in.)	(mm)	(in.)	(mm)	(in.)	(mm)
1.66	42.16	3.02	4.50	1.278	32.46	1.184	30.07	1.125	28.58	1.125	28.58	1.012	25.70	Available on Request
1.90	48.26	3.64	5.42	1.500	38.10	1.406	35.71	1.375	34.93	1.375	34.93	1.250	31.75	0.62	15.75
2.375	60.33	5.3	7.89	1.939	49.25	1.845	46.86	1.781	45.24	1.781	45.24	1.640	41.66	0.88	22.35
		5.95	8.86	1.867	47.42	1.773	45.03	1.710	43.43	1.710	43.43	1.560	39.62	0.75	19.05
		6.2	9.23	1.853	47.07	1.759	44.68	1.710	43.43	1.710	43.43	1.560	39.62	0.75	19.05
		7.7	11.47	1.703	43.26	1.609	40.87	1.500	38.10	1.500	38.10	1.345	34.16	0.62	15.75
2.875	73.03	7.9	11.77	2.323	59.00	2.229	56.62	2.199	55.58	2.188	55.58	2.010	51.05	1.12	28.45
		8.7	12.96	2.259	57.38	2.165	54.99	2.125	53.98	2.125	53.98	1.937	49.20	0.88	22.35
		8.9	13.26	2.243	56.97	2.149	54.58	2.125	53.98	2.125	53.98	1.937	49.20	0.88	22.35
		9.5	14.15	2.196	55.75	2.101	53.37	2.000	50.80	2.000	50.80	1.881	47.78	0.88	22.35
		10.4	15.49	2.151	54.64	2.057	52.25	2.000	50.80	2.000	50.80	1.881	47.78	0.88	22.35
		11	16.38	2.065	52.45	1.971	50.06	1.875	47.63	1.875	47.63	1.716	43.59	0.88	22.35
		11.65	17.35	1.995	50.67	1.901	48.29	1.875	47.63	1.875	47.63	1.716	43.59	0.88	22.35
3.5	89.90	12.95	19.29	2.750	69.85	2.625	66.68	2.562	65.07	2.562	65.07	2.329	59.16	1.38	35.05
		15.8	23.53	2.548	64.72	2.423	61.54	2.313	58.75	2.313	58.75	2.131	54.13	1.12	28.45
		16.7	24.87	2.480	62.99	2.355	59.82	2.313	58.75	2.313	58.75	2.131	54.13	1.12	28.45
		17.05	25.40	2.440	61.98	2.315	58.80	2.188	55.58	2.188	55.58	2.010	51.05	1.12	28.45

Frequently Asked Questions

What industries use R Landing Nipple?

R Landing Nipples are used in oil and gas exploration, drilling, completion, and production operations requiring reliable subsurface flow control solutions globally.

Is RN Landing Nipple suitable for long-term use?

Yes, RN Landing Nipple is built for long service life, offering excellent durability and consistent performance in extended oilfield operations.

What quality standards do your RN Landing Nipples follow?

Our RN Landing Nipples follow API standards and global oilfield requirements, ensuring precise design, high strength, durability, and dependable performance across applications.

Do you export R Landing Nipple internationally?

DIC Oil Tools is a reliable exporter of R Landing Nipples, serving clients across the USA, Russia, UAE, Saudi Arabia, Oman, Iraq, Brazil, and other global markets.

How does RN Landing Nipple enhance equipment reliability?

Its consistent internal design ensures proper tool engagement, reducing wear, preventing failures, and improving overall equipment reliability.

Is branding or private labelling available?

Yes, as a trusted R Landing Nipple supplier, we offer branding and private labelling options based on customer requirements for global distribution.

What is the difference between R and RN Landing Nipples?

R Landing Nipples are used with heavy-weight tubing, while RN Landing Nipples have a modified profile for more precise tool positioning and depth control.

Why choose your company as an RN Landing Nipple supplier?

DIC Oil Tools is a leading RN Landing Nipple supplier offering high-quality products, customization flexibility, competitive pricing, and dependable customer support.

Are your products suitable for international standards?

Our R and RN Landing Nipples are manufactured in accordance with international oilfield quality standards, ensuring reliable performance, durability, safety, and compliance for global operations.
