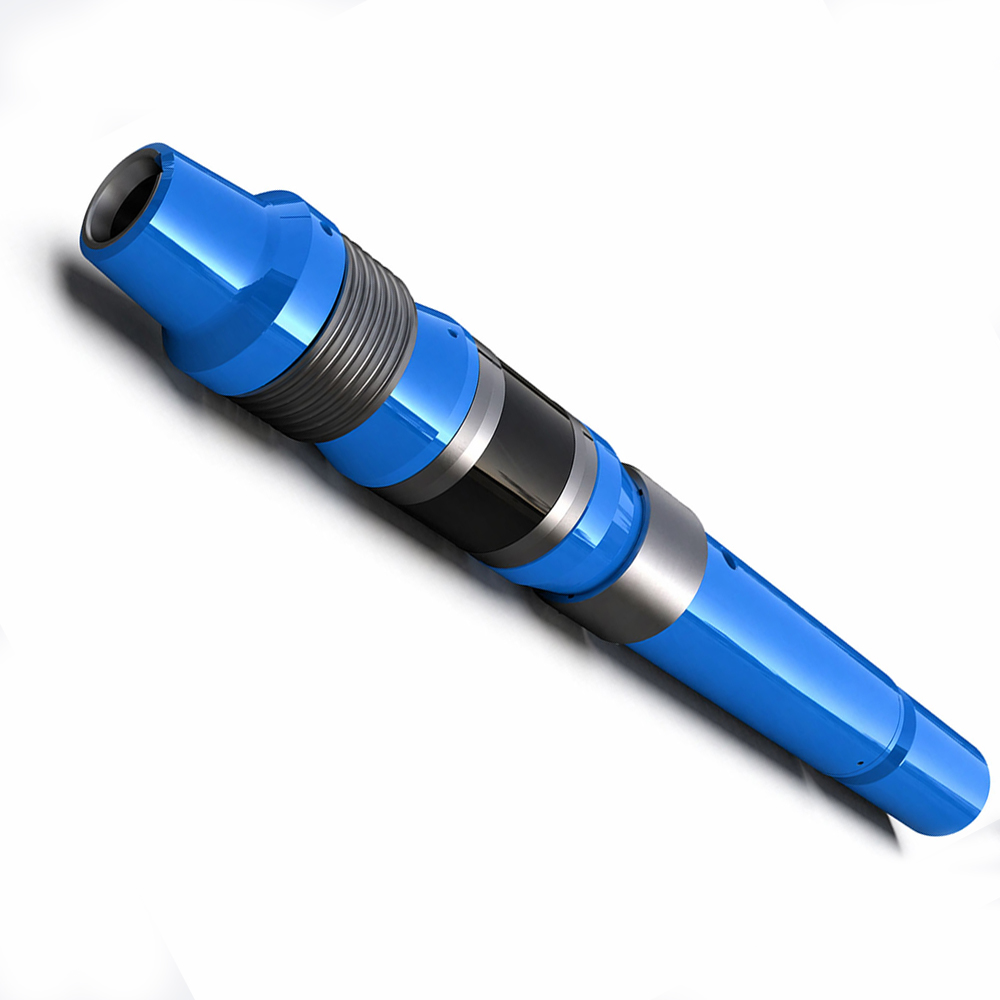

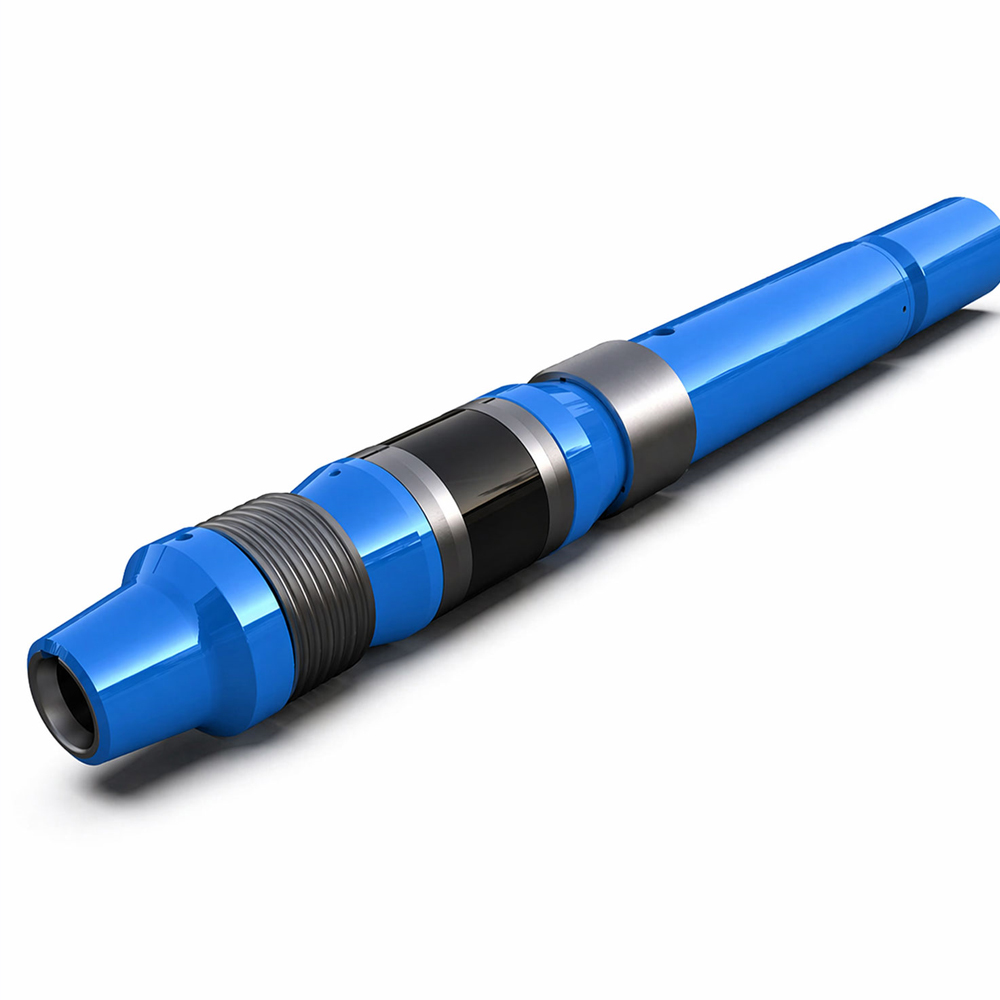

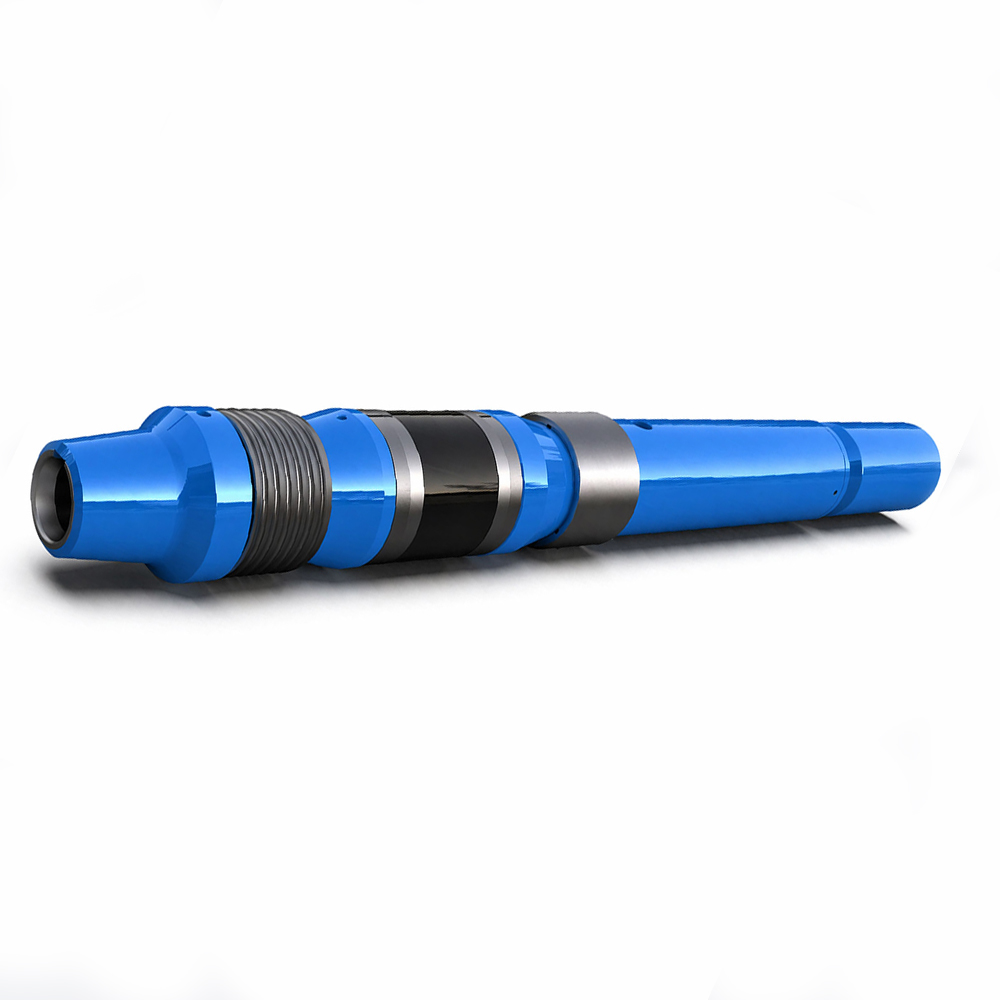

Hydro- Mechanical Permanent Bridge Plug

Hydro- Mechanical Permanent Bridge Plug

DIC Oil Tools is a reliable Hydro Mechanical Permanent Bridge Plug Supplier and Exporter, delivering high-performance solutions for advanced oilfield operations. The HMBP is engineered for hydraulic activation using a dropped setting ball and is fully set through mechanical manipulation, eliminating the need for complex setting tools or adapters. Its design supports deployment on coiled tubing and provides a clear thru-bore after setting for enhanced operational flexibility.
The plug features a single-piece packing element with full-circle backup rings, ensuring dependable sealing performance. All components are securely assembled for smooth run-in and to minimize the risk of pre-setting. A full-circle slip system provides strong anchoring in high-strength casings and withstands pressure from both above and below.
An optional rotational release allows thru-bore access for wireline operations without removing tubing, saving rig time. Manufactured under strict quality standards, the plug ensures durability, strength, and efficient drill-out performance worldwide.

Contact us for Hydro Mechanical Permanent Bridge Plug

Technical Specification

Casing Size Casing Weight Bridge Plug OD Casing ID Range
Inch lb/ft Inch Min. Max.
4-1/2 9.5 - 15.1 3.59 3.82 4.09
5 11.5 - 20.8 3.93 4.15 4.56
5-1/2 13.0 - 23.0 4.31 4.58 5.044
6-5/8 20 - 32 5.37 5.59 6.13
7 17.0 - 35.0 5.68 6.00 6.68
7-5/8 20.0 - 39.0 6.63 6.31 7.12
8-5/8 24.0 - 49.0 7.31 7.12 8.09
9-5/8 29.3 - 58.4 8.12 8.43 9.09
13-3/8 48.0 - 80.7 12.18 11.86 12.71

Frequently Asked Questions

How does a Hydro-Mechanical Permanent Bridge Plug work?
A Hydro-Mechanical Permanent Bridge Plug is activated hydraulically using a setting ball and then mechanically set to create a strong, permanent seal inside casing.
In which industries is a Hydro-Mechanical Permanent Bridge Plug used?
A Hydro-Mechanical Permanent Bridge Plug is widely used in the oil and gas industry for completion, intervention, and permanent well abandonment operations.
Can the Hydro-Mechanical Permanent Bridge Plug be customized as per customer drawings?
Yes, the Hydro-Mechanical Permanent Bridge Plug is manufactured as per customer drawings and specifications, ensuring precise design compatibility, performance requirements, and reliable application in specific well conditions.
What factors should be considered before purchasing?
Before purchasing, key factors include product quality, manufacturing standards, certifications, customization capability, competitive pricing, delivery timelines, and availability of technical support for efficient operations.
Can a Hydro-Mechanical Permanent Bridge Plug be used offshore?
Yes, a Hydro-Mechanical Permanent Bridge Plug is suitable for both onshore and offshore applications, delivering consistent performance in demanding environments.
Do you supply Hydro-Mechanical Permanent Bridge Plug in different countries?
Yes, DIC is a trusted global supplier of Hydro-Mechanical Permanent Bridge Plug, supplying to countries including UAE, Oman, Kuwait, Qatar, Bahrain, US, Mexico, Brazil, Argentina, Colombia, Egypt, Azerbaijan, Kazakhstan, Russia, Malaysia, Australia, UK, Germany, France, Netherlands, and across Europe and other international markets.
Can you handle bulk export orders?
Yes, we are a reliable exporter of Hydro-Mechanical Permanent Bridge Plug, capable of handling bulk orders with consistent quality, timely production, and efficient global delivery for large-scale projects.
Do you provide packaging suitable for international shipping?
Yes, we provide secure export-grade packaging designed to protect the product during transit and ensure safe delivery across international locations.
Can you support long-term business partnerships?
Yes, DIC Oil Tools support long-term partnerships through consistent supply, reliable service, and commitment to meeting client requirements across ongoing projects.
