Snap Latch Setting Tool

Snap Latch Setting Tool

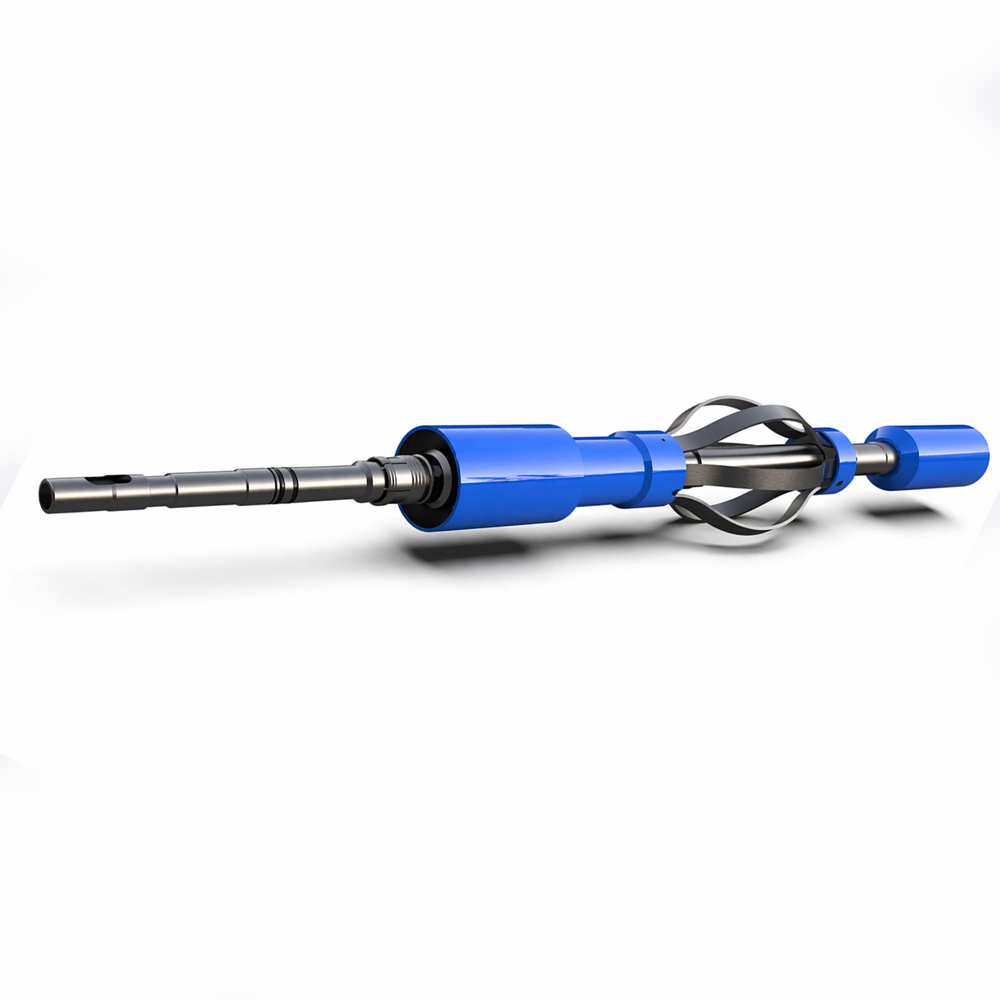

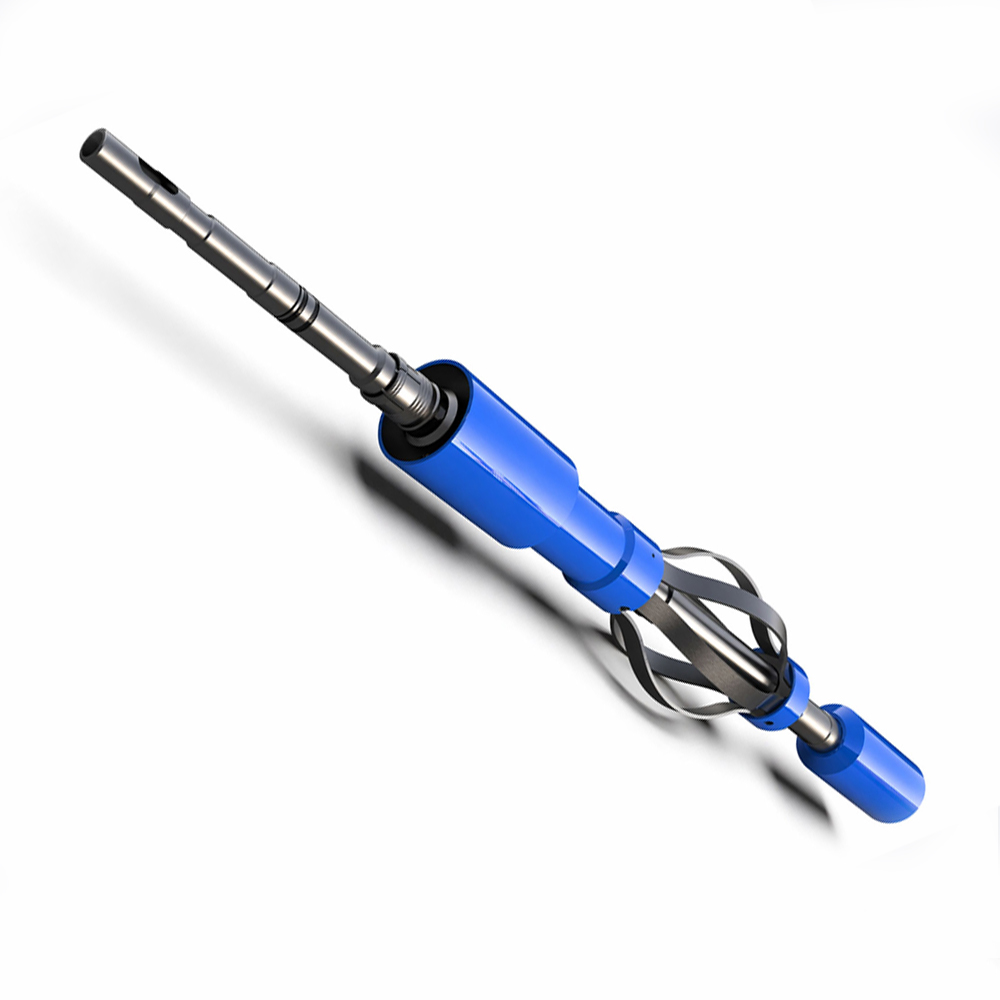

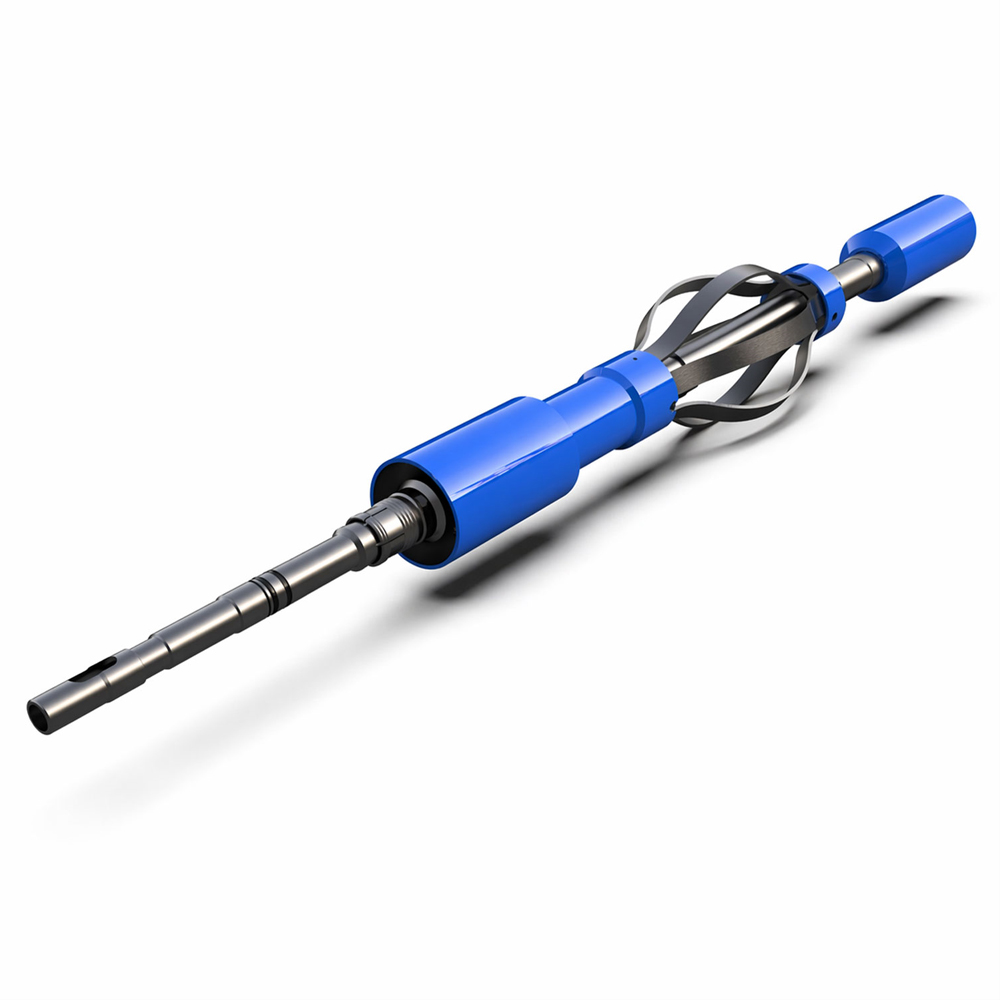

We are a trusted Snap Latch Setting Tool Supplier and Exporter, offering efficient solutions for cementing and setting operations. The SLST is designed to enable cementing through a Wireline or Mechanical Cement Retainer while also allowing mechanical setting of Bridge Plugs and Cement Retainers.
It features a Snap-in/Snap-Out sub that connects securely with the body of the BP/CR, along with a Stinger Sub used in Cement Retainers. This design ensures smooth engagement and reliable tool performance during operations.
When the Stinger Sub is in use, applying approximately 400 lbs. slack off shifts the latch sleeve on the Cement Retainer to the open position for cementing. Lifting the string by about 2 inches closes the sleeve. The tool also includes an internal stop to prevent accidental unlatching of the stinger, ensuring safe and controlled operation.

Connect with us for high-quality products and global export solutions.

Technical Specification

Casing Size Casing Weight Length Stinger OD ID
inch lb/ft inch inch inch
4 1/2 9.5-16.6 25.87 1.15 0.87
5 23.2-24.2
5 1/2 36.4
5 11.5-20.8
5 1/2 26.0-32.3
5 1/2 14-23
6 18-26
7 49.5
6 5/8 20-32 29.18 1.68 1.31
7 32-44
7 17-38
7 5/8 45.3
7 5/8 24-39
7 3/4 46.1
8 5/8 24-49
8 3/4 49.7
9 5/8 29.3-58.4
9 3/4 59.2
9 7/8 62.8
10-3/4 60.7-81
10-3/4 32.75-60.7
11-3/4 42-60
13-3/8 68-102
13-1/2 81.4
13-5/8 88.2
13-3/8 48-80.7

Frequently Asked Questions

How does the Snap Latch Setting Tool work?
The tool connects to the bridge plug or cement retainer via a snap latch mechanism and allows mechanical setting with controlled movement of the tubing string.
Why choose a Snap Latch Setting Tool for cementing operations?
It ensures precise control during cementing, secure tool engagement, and consistent performance in high-pressure well environments.
What quality standards do you follow?
Our tools are manufactured in accordance with API standards and international oilfield quality requirements with strict testing and inspection procedures.
How does the Snap Latch Setting Tool improve cementing efficiency?

The Snap Latch Setting Tool allows controlled opening and closing of the flow path, reducing cement loss, improving placement accuracy, and minimizing operational delays.

Do you offer customized Snap Latch Setting Tools?
Yes, DIC provide customized Snap Latch Setting Tools based on well specifications, operating conditions, and specific client requirements worldwide.
Is the Snap Latch Setting Tool easy to operate?
Yes, the Snap Latch Setting Tool is designed for easy operation, requiring minimal adjustments while ensuring precise, reliable, and consistent performance.
Which countries do you export Snap Latch Setting Tools to?
DIC Oil Tools is a reliable exporter of Snap Latch Setting Tools, exporting to Canada, Brazil, Mexico, Australia, Malaysia, Algeria, Norway, Kazakhstan, United Kingdom, Germany, Netherlands, Argentina, Thailand, Russia and other global markets.
What makes your Snap Latch Setting Tools a reliable choice?
They are designed for durability, precision performance, easy operation, and consistent results, ensuring reliable performance in demanding oilfield conditions worldwide.
Do you maintain consistency in every order?
As a reliable Snap Latch Setting Tool supplier, we maintain consistent quality through strict manufacturing standards and comprehensive inspection procedures.
