R-3S Single Grip

R-3S Single Grip

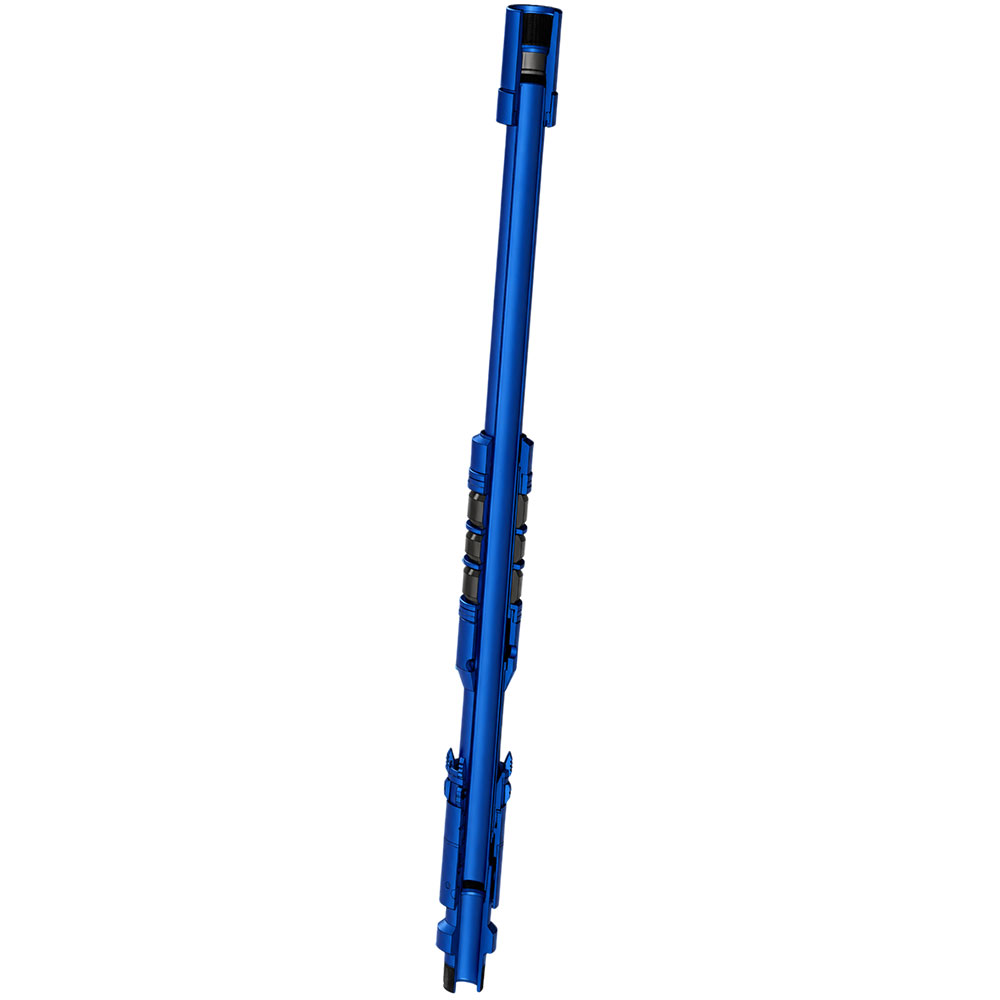

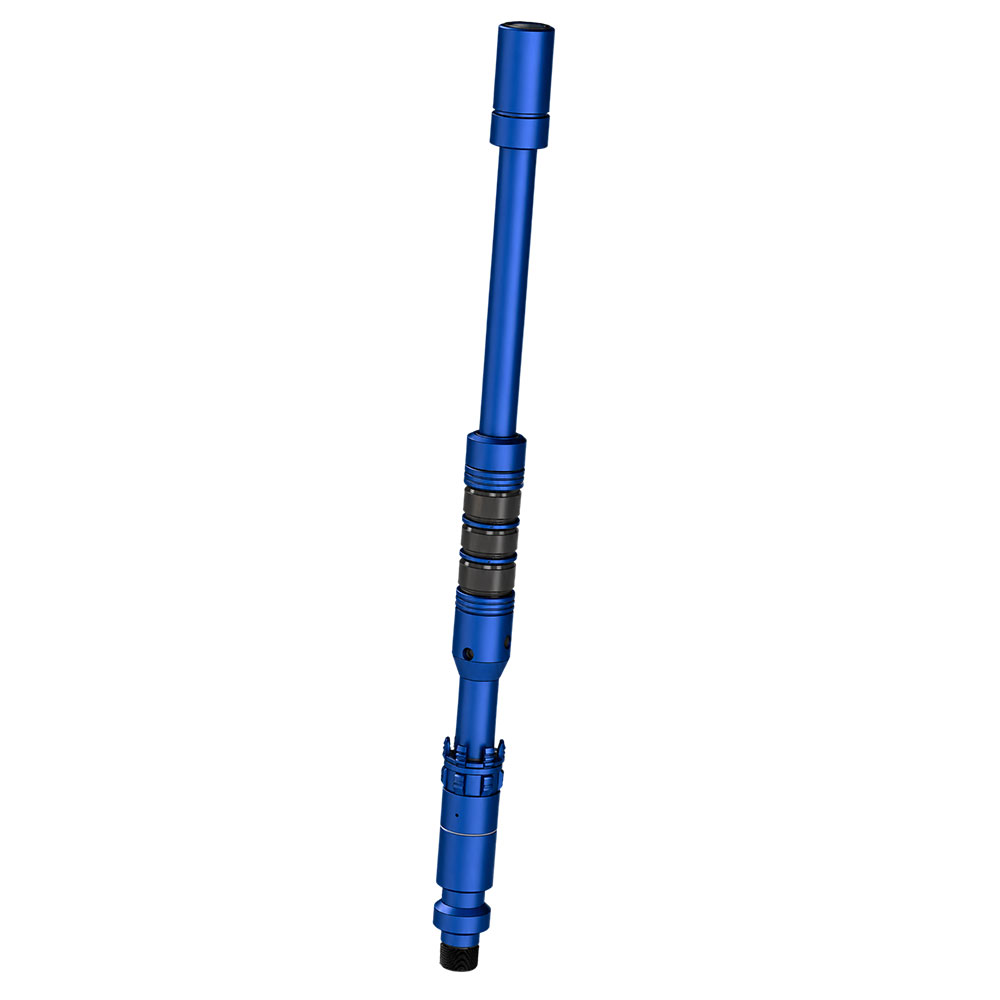

We are R-3S Single Grip Packer Exporter providing a strong and efficient single grip compression set retrievable packer built for tough well conditions. It is specially suitable for wells with high or sudden bottom-hole pressure and performs well as a long stroke production packer. This packer helps separate the annulus from the production tubing, ensuring smooth and controlled flow. Its simple structure makes installation and retrieval quick and hassle-free, saving time on operations. Due to its reliable performance and easy handling, the R-3S Single Grip packer is widely used in oilfield projects worldwide.

Reach out to us today for the best price and support.

Features of the R-3S Packer:

  • Secure setting in all casing types, including premium grades
  • Three-piece packing element system
  • Large bypass area for smooth operation
  • Surface-controlled bypass and equalizing valve
  • Rocker-type slips for strong grip
  • Interchangeable parts for easy maintenance
  • Field-proven design, suitable up to 300°F (higher ratings available)

Technical Specification

Packer Casing Tool Size
OD Thread WT (T&C) Setting Range OD ID
MM
IN		 MM
IN		 KG/M
LBS/FT		 MM
IN		 MM
IN		 MM
IN
114.3
4-1/2		 60.3
2-3/8		 14.14 – 20.09
9.5 – 13.5		 99.57 – 103.89
3.920 – 4.090		 95.25
3.750		 49.3
1.94
139.7
5-1/2		 60.3
2-3/8		 19.35 – 23.07
13.0 – 15.5		 125.73 – 128.12
4.950 – 5.044		 121.44
4.781		 49.3
1.94
19.35 – 25.30
13.0 – 17.0		 124.26 – 128.12
4.892 – 5.044		 119.86
4.719		 49.3
1.94
23.07 – 29.76
15.5 – 20.0		 121.36 – 125.73
4.778 – 4.950		 117.88
4.641		 49.3
1.94
29.76 – 34.23
20.0 – 23.0		 118.62 – 121.36
4.670 – 4.778		 114.30
4.500		 49.3
1.94
73.0
2-7/8		 19.35 – 23.07
13.0 – 15.5		 125.73 – 128.12
4.950 – 5.044		 121.44
4.781		 60.2
2.37
25.30 – 29.76
17.0 – 20.0		 121.36 – 124.26
4.778 – 4.892		 117.88
4.641		 60.2
2.37
29.76 – 34.23
20.0 – 23.0		 118.62 – 121.36
4.670 – 4.778		 114.30
4.500		 60.2
2.37
146.1
5-3/4		 60.3
2-3/8		 29.02 – 33.48
19.5 – 22.5		 126.75 – 129.29
4.990 – 5.090		 121.44
4.781		 49.3
1.94
152.4
6		 60.3
2-3/8		 38.69
26.0		 130.35
5.132		 121.44
4.781		 49.3
1.94
168.3
6-5/8		 73.0
2-7/8		 25.30
17.0		 155.83
6.135		 147.62
5.812		 60.5
2.38
29.76
20.0		 153.64
6.049		 146.84
5.781		 60.5
2.38
35.72
24.0		 150.39
5.921		 143.66
5.656		 60.5
2.38
177.8
7		 73.0
2-7/8		 25.30 – 29.76
17.0 – 20.0		 163.98 – 166.07
6.450 – 6.538		 159.16
6.266		 60.5
2.38
29.76 – 38.69
20.0 – 26.0		 159.41 – 163.98
6.276 – 6.456		 154.38
6.078		 60.5
2.38
38.69 – 43.16
26.0 – 29.0		 157.07 – 159.41
6.184 – 6.276		 151.59
5.968		 60.5
2.38
47.62 – 52.09
32.0 – 35.0		 152.50 – 154.79
6.004 – 6.094		 147.62
5.812		 60.5
2.38
56.55
38		 150.37
5.920		 143.66
5.656		 60.5
2.38

Frequently Asked Questions

What is an R-3S Single Grip Packer?
The R-3S Single Grip Packer is a compression-set, retrievable mechanical production packer used in oil and gas wells to isolate the annulus between tubing and casing.
What makes the R-3S Single Grip Packer suitable for high-pressure wells?
The R-3S packer is designed with a robust single-grip mechanism and reliable sealing elements, making it highly effective in wells with excessive or unexpected bottom-hole pressure.
What type of slips are used in the R-3S Single Grip Packer?
The packer uses rocker-type slips that provide strong anchoring and ensure a secure hold in various casing conditions.
How is the R-3S Single Grip Packer set?

The packer is set using compression force applied through the tubing string, ensuring a secure and reliable seal in the wellbore.

Can the R-3S Single Grip Packer handle high temperatures?
Yes, the packer is recommended for applications up to 300°F, with higher temperature ratings available upon request.
Does the R-3S Single Grip Packer work in all casing types?
Yes, it is designed to set securely in all casing types, including premium and hard-grade casings.
What services do you offer as an R-3S Single Grip Packer exporter?
As an R-3S Single Grip Packer exporter, we offer customization, quality assurance, and reliable worldwide delivery.
Do you handle bulk orders of R-3S Single Grip Packer?
Yes, as a trusted supplier, we efficiently handle bulk orders while maintaining consistent quality and timely delivery schedules.
Do you offer customization for R-3S Single Grip Packer?
Yes, DIC provide customization options based on well conditions, sizes, temperature ratings, and operational requirements.
