Solution for Mud Pump
Mud Pump Valve
Mud Pump Valve Types (Including High Temp):-

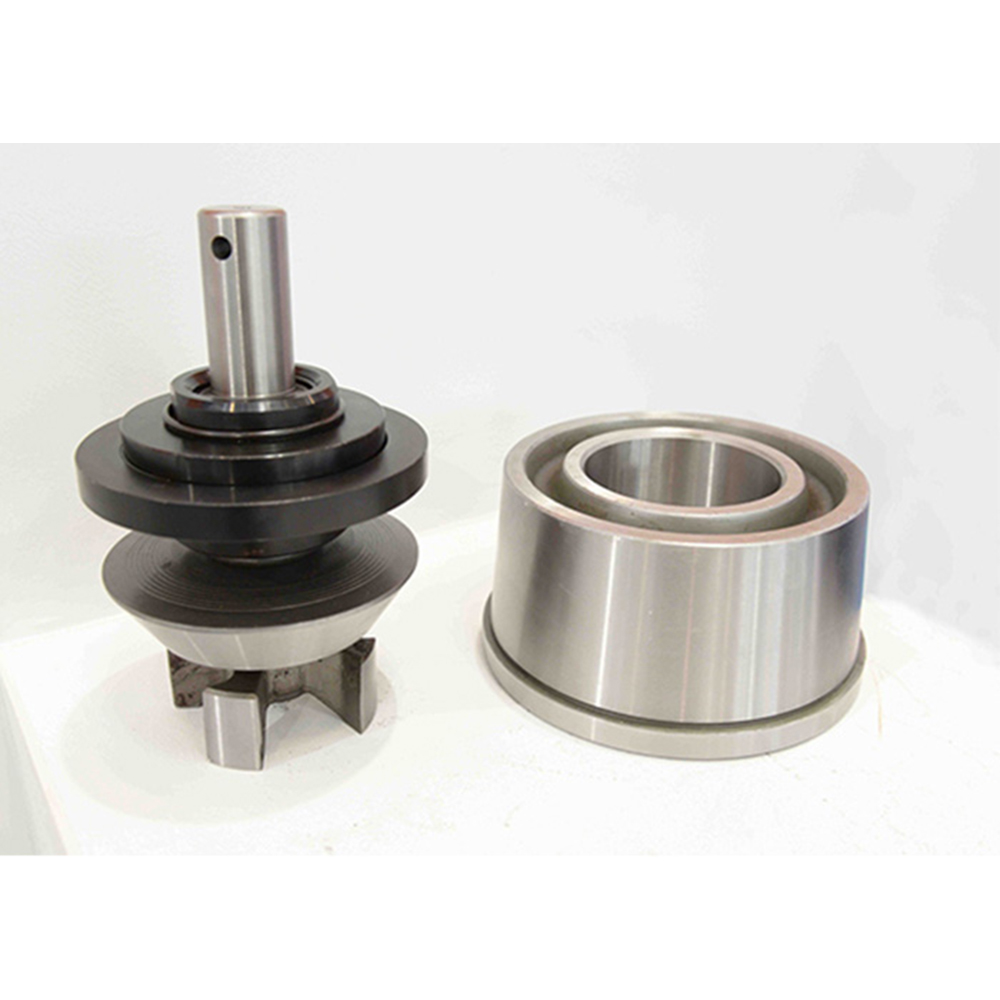

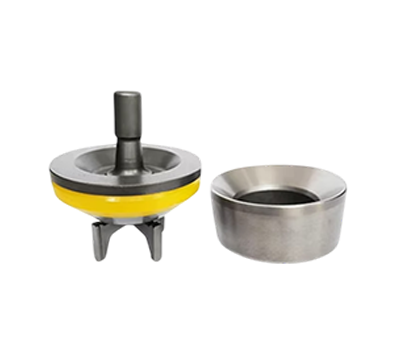

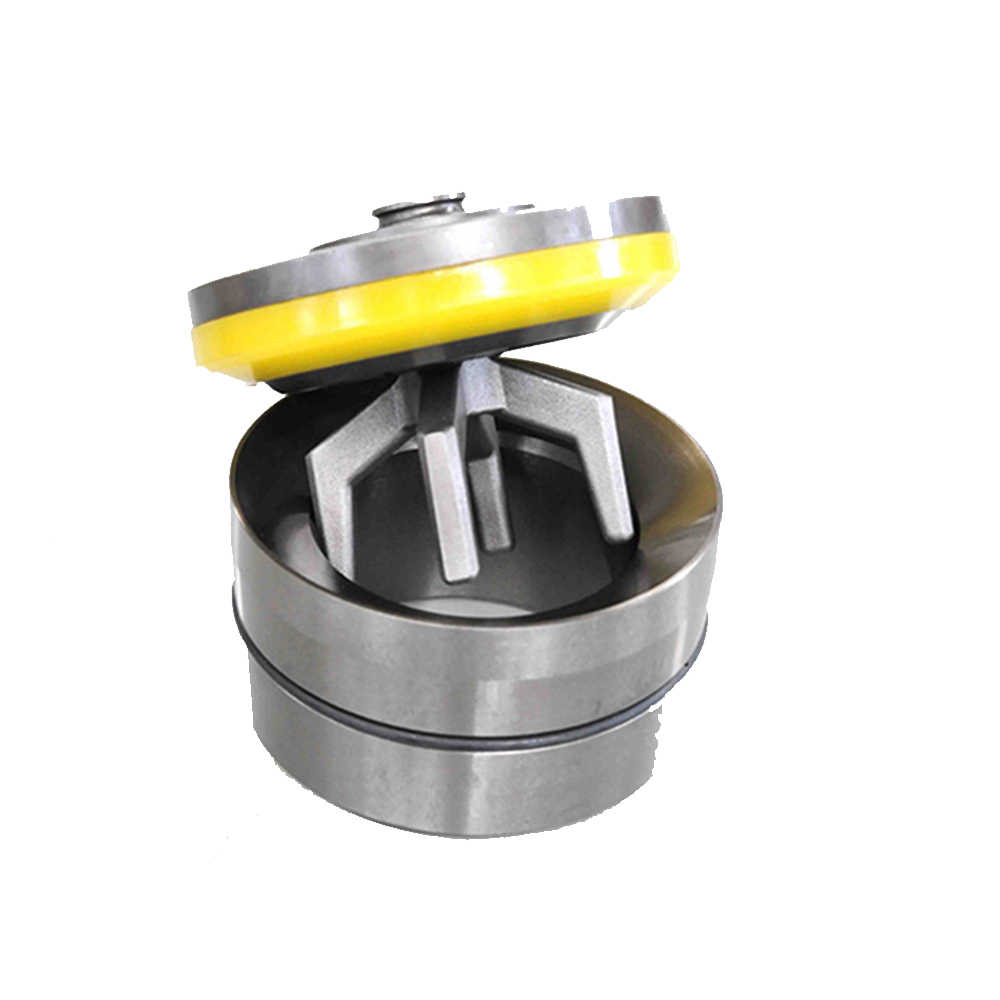

4 Web Valve (center guided)
Each of these can come in standard and high temperature versions, depending on the insert material used. Our heavy-duty and high-temperature valves, complete with replaceable inserts, are integral to effective mud pump system solutions.
| Parameter | Full Open Valve | 3 Web valve & Seat | 4 Web valve & Seat |
|---|---|---|---|
 |
 |
 |
|

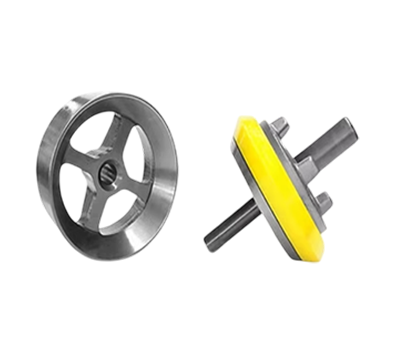

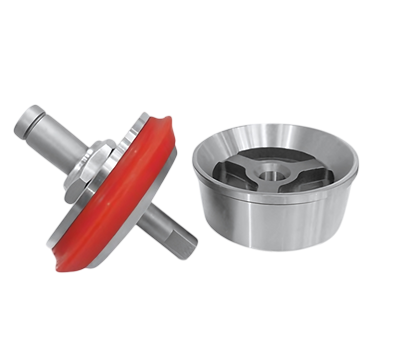

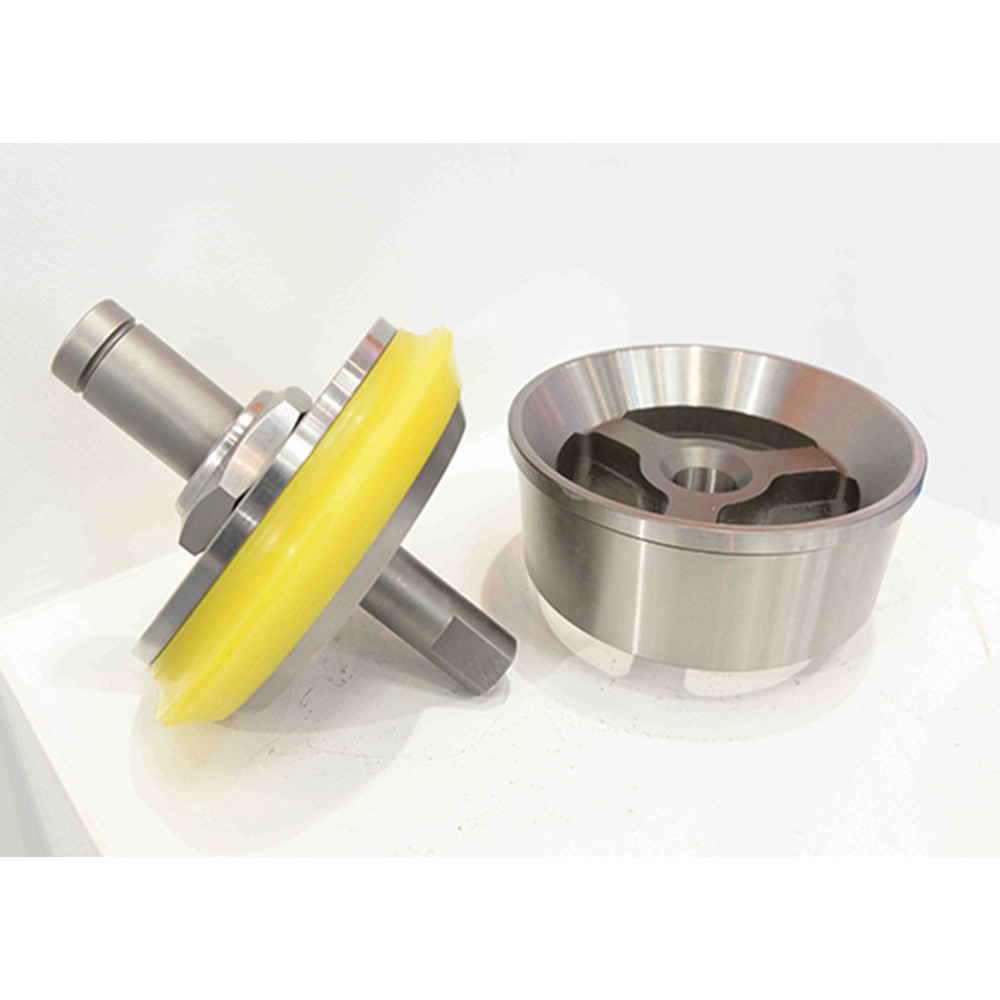

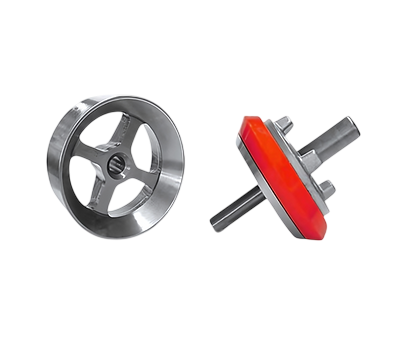

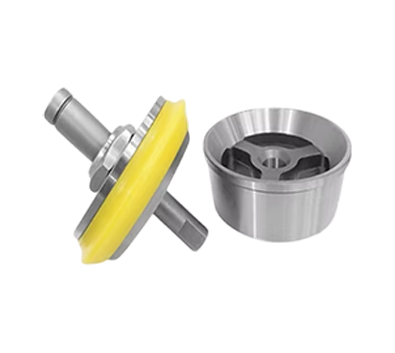

| Valve Type / Design | Full open seat, no internal support webs | Three support webs | Four support webs |
| Flow Area | Highest — best fluid flow | Medium | Lower than full open |
| Structural Strength | Medium | High | Highest |
| Typical Application | Most drilling operations | Medium high pressure | High-pressure / abrasive drilling |
| Max Working Pressure (Seat) | Up to ~7500 psi | Up to ~7500 psi | Up to ~7500 psi |
| Temperature Rating (Std Insert) | ~170–180°F (77–82°C) | ~160–180°F (71–82°C) | ~160–180°F (71–82°C) |
| Insert Options | Urethane / NBR / HNBR | Urethane/rubber | Urethane/rubber |
| Material (Valve & Seat) | Forged steel valve body, 20CrMnTi valve stem, stainless steel valve seat, bonded urethane inserts | Available with urethane inserts or rubber inserts to suit different drilling fluid conditions. | – Valve Body: Forged steel or 20CrMnTi alloy – Valve Seat: Stainless steel – Sealing Insert: High-temperature bonded urethane |
| API Sizes | 6 1/4″ — 7 1/2″ | 6 1/4″ — 7 1/2″ | 6 1/4″ — 7 1/2″ |
| Sealing Type | Full sealing contact | Sealed insert around webs | Sealed insert with more support webs |
| Best For | Maximum flow & easy maintenance | Balanced flow/strength | Very high pressure & heavy solids |
| Parameter | Full Open High Temp Valve | 3 Web High Temp Valve & Seat | 4 Web High Temp Valve & Seat |
|---|---|---|---|
 |
 |
 |
|
| Design Type | Full open (max flow) | Center guided 3 support webs | Center guided 4 support webs |
| Body/Seat material | 20CrMnTi | 20CrMnTi | 20CrMnTi |
| Insert Material | High temp Urethane | High temp Urethane | High temp Urethane |
| Hardness | 59-65 | 90 | 90 |
| Max Working Pressure (Seat) | up to 7500 psi (≈52 MPa) | up to 7500 psi (≈52 MPa) | up to 7500 psi (≈52 MPa) |
| Temperature Range (High Temp Insert) | Up to ~350°F (~177°C) | Up to ~350°F (~177°C) | Up to ~350°F (~177°C) |
| Min Temp Capability | ~ 20°F (~ 29°C) | ~ 20°F (~ 29°C) | ~ 20°F (~ 29°C) |
| Abrasion/Tear Resistance | Excellent | Excellent | Excellent |
| API Sizes Typically Available | 6″ to 8″ API | 6″ to 8″ API | 6″ to 8″ API |
| Typical Inserts | High temp bonded urethane | High temp bonded urethane | High temp bonded urethane |
| Application | High temp, high pressure drilling | High temp, high pressure drilling | High temp, high pressure drilling |
Frequently Asked Questions
Why is Mud Pump Valve Seat important in drilling operations?
Mud Pump Valve Seat plays a key role in maintaining pressure control, preventing fluid backflow, and ensuring efficient mud circulation in drilling systems.
What makes your Mud Pump Valve Seat suitable for export markets?
Our Mud Pump Valve Seats are manufactured with high-quality materials, strict quality standards, and export-ready packaging for global drilling applications.
How does Mud Pump Valve Seat affect mud pump performance?
A precision-engineered Mud Pump Valve Seat improves sealing efficiency, reduces leakage, enhances pump performance, and increases overall operational reliability.
Can Mud Pump Valve Seat be customized for different drilling conditions?
Yes, Mud Pump Valve Seats can be customized based on pressure requirements, material selection, design specifications, and application needs.
Do you support international supply of Mud Pump Valve Seat?
What factors should be considered when selecting a Mud Pump Valve Seat?
Material quality, pressure rating, compatibility, and durability are key factors when selecting the right Mud Pump Valve Seat.
How does a Mud Pump Valve Seat supplier ensure product quality?
DIC is a trusted Mud Pump Valve Seat supplier, following strict quality control, precision manufacturing, and advanced testing standards to ensure reliable performance.
How does a Mud Pump Valve Seat improve drilling efficiency?
A properly designed Mud Pump Valve Seat ensures effective sealing, reduces fluid loss, and enhances overall drilling performance.
What makes DIC Oil Tools a reliable Mud Pump Valve Seat exporter?
DIC Oil Tools ensures premium quality, strict manufacturing standards, and timely international delivery, making it a dependable Mud Pump Valve Seat exporter.
