AD-1 Tension

AD-1 Tension

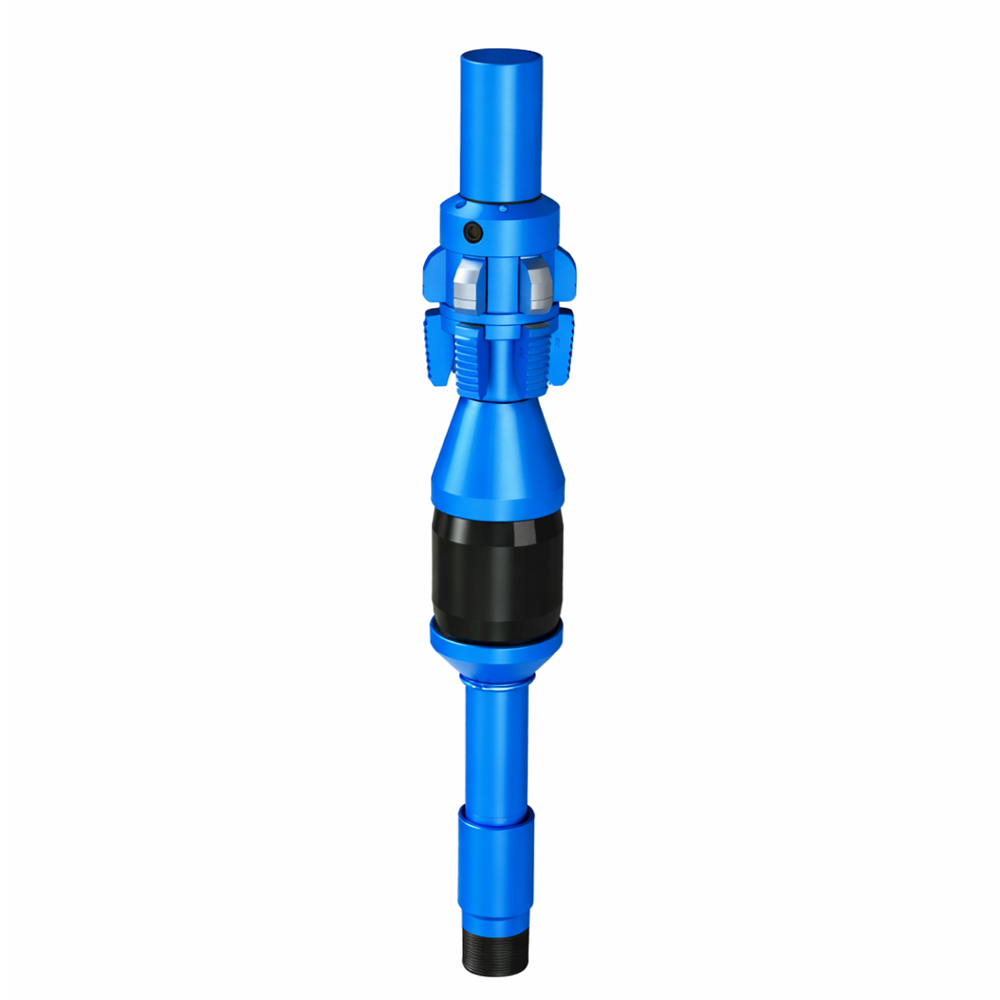

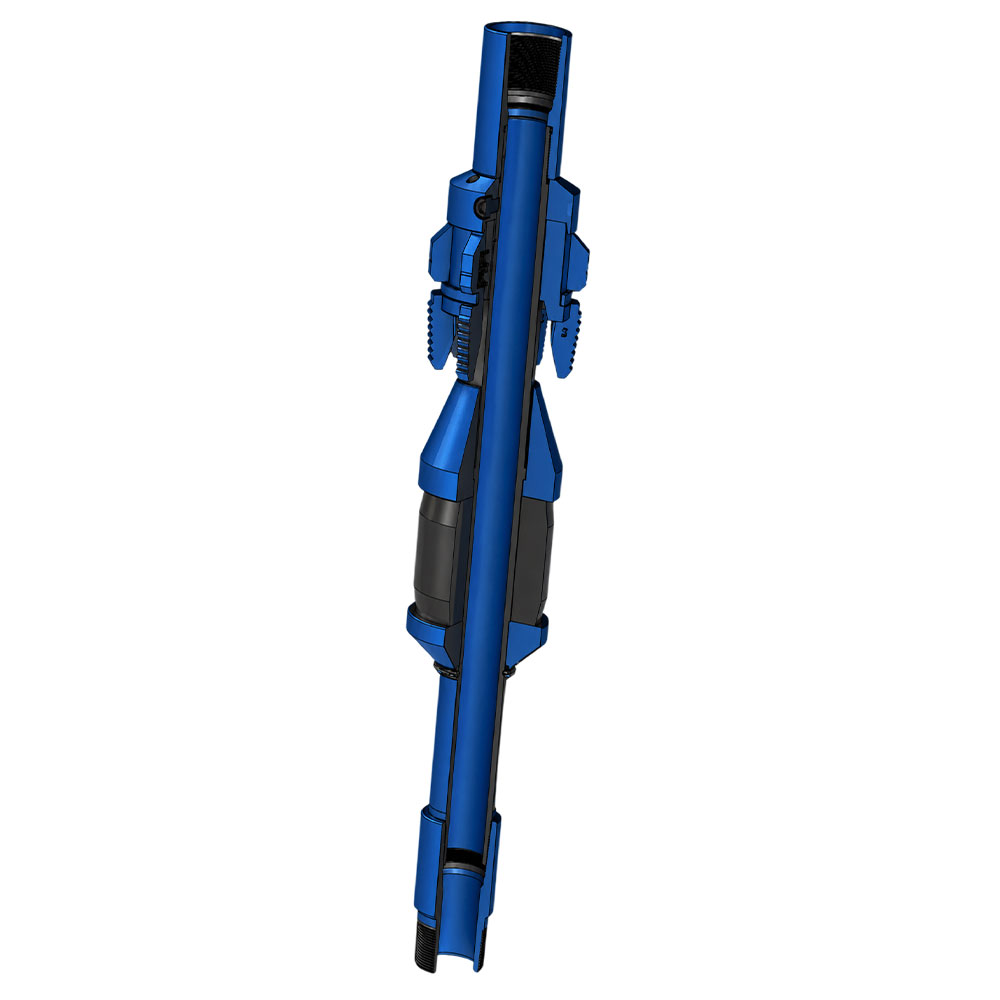

We are AD-1 Tension Packer Exporter offering a simple and reliable tension-set packer used to hold pressure from below in shallow wells. It is a cost-effective option where enough weight is not available to set other packers. This packer is commonly used in water flooding, oil production, and treating jobs. Its lightweight and compact design makes it easy to carry, install, and operate. It works well in all types of casing, including premium grades, and has a larger bore for better flow. The packer is made from strong materials that can handle high temperature up to 300°F. It also has easy J-slot control, rocker slips, and multiple release options for safe and smooth operation. We offer customization options, and supply to Russia, Germany, Iraq, Azerbaijan, Italy, Canada, UK, UAE, Oman, Saudi Arabia and other global markets.

Contact us today for more details and the best price for your requirements.

Technical Specification

Packer Casing Tool Size
OD Thread WT (T&C) Setting Range OD ID
mm
in		 mm
in		 kg/m
lbs/ft		 mm
in		 mm
in		 mm
in
114.3
4-1/2		 60.3
2-3/8		 14.14 – 20.09 99.57 – 103.89 95.25 49.3
9.5 – 13.5 3.920 – 4.090 3.771 1.94
139.7
5-1/2		 60.3
2-3/8		 19.35 – 23.07 125.73 – 128.12 121.44 49.3
13.0 – 15.54.950 – 5.0444.7811.94
23.07 – 29.76121.36 – 125.73117.8849.3
15.5 – 20.04.778 – 4.9504.6411.94
29.76 – 34.23118.62 – 121.36114.3049.3
20.0 – 23.04.670 – 4.7784.5001.94
73.0
2-7/8		 19.35 – 25.30 124.26 – 128.12 120.65 63.5
13.0 – 17.04.892 – 5.0444.7502.50
25.30 – 29.76121.36 – 124.26117.8863.5
17.0 – 20.04.778 – 4.8924.6412.50
146.1
5-3/4		 60.3
2-3/8		 29.02 – 33.48 126.75 – 129.29 121.44 49.3
19.5 – 22.5 4.990 – 5.090 4.781 1.94
152.4
6		 60.3
2-3/8		 38.69 130.35 121.44 49.3
26.0 5.132 4.781 1.94
168.3
6-5/8		 73.0
2-7/8		 25.30 – 29.76 153.64 – 155.83 147.62 60.5
17.0 – 20.06.049 – 6.1355.8122.38
35.72150.39143.6660.5
24.05.9215.6562.38
177.8
7		 73.0
2-7/8		 25.30 – 29.76 163.98 – 166.07 159.16 60.5
17.0 – 20.06.450 – 6.5386.2662.38
29.76 – 38.69159.41 – 163.98154.3860.5
20.0 – 26.06.276 – 6.4566.0782.38
38.69 – 43.16157.07 – 159.41151.5960.5
26.0 – 29.06.184 – 6.2765.9682.38
47.62 – 52.09152.50 – 154.79147.6260.5
32.0 – 35.06.004 – 6.0945.8122.38
56.55150.37143.6660.5
385.9205.6562.38

Frequently Asked Questions

What is a tension packer?
A tension packer is a downhole tool used in oil and gas wells to seal the annulus between tubing and casing. It is set by applying upward tension to the tubing string.
Can a tension packer be reused?
It depends on the design. Some retrievable packers can be reused, but permanent packers cannot.
Can the AD-1 Tension Packer handle high temperatures?
Yes, the packer is designed to withstand temperatures up to 300°F, ensuring reliable performance in high-temperature downhole environments.
Do you offer customization for AD-1 Tension Packer?
Yes, we provide customization options for AD-1 Tension Packer based on well conditions, sizes, pressure ratings, and operational requirements.
Is AD-1 Tension Packer easy to handle?
Yes, the AD-1 Tension Packer features a lightweight, compact design for easy transportation, installation, and field operation.
What services do you offer as an AD-1 Tension Packer exporter?
As an AD-1 Tension Packer exporter, we provide manufacturing, customization, quality assurance, and reliable worldwide delivery services.
Do you handle bulk orders of Tension Packer?
Yes, as a Tension Packer supplier, we efficiently handle bulk orders while ensuring consistent quality and timely delivery schedules.
Does AD-1 Tension Packer improve production flow?
Yes, the AD-1 Tension Packer features a large bore design that enhances fluid flow and improves overall production efficiency.
Which countries do you export AD-1 Tension Packer to?
DIC Oil Tools export AD-1 Tension Packer globally, including Russia, Germany, Iraq, Azerbaijan, Italy, Canada, UK, UAE, Oman, and Saudi Arabia and more other countries.
